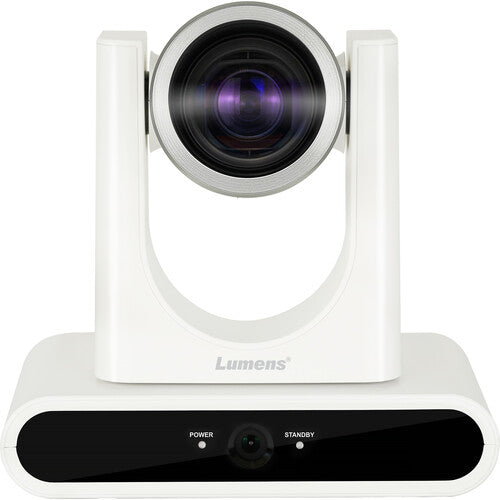

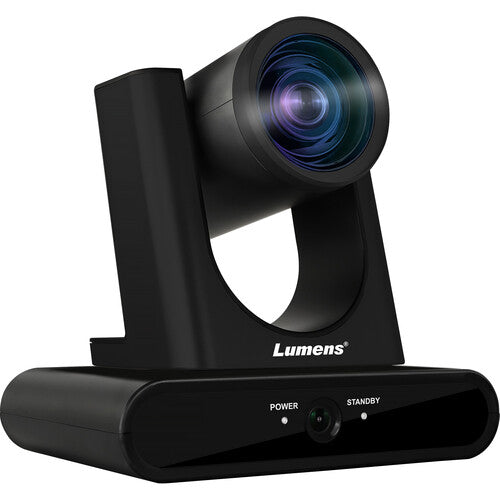

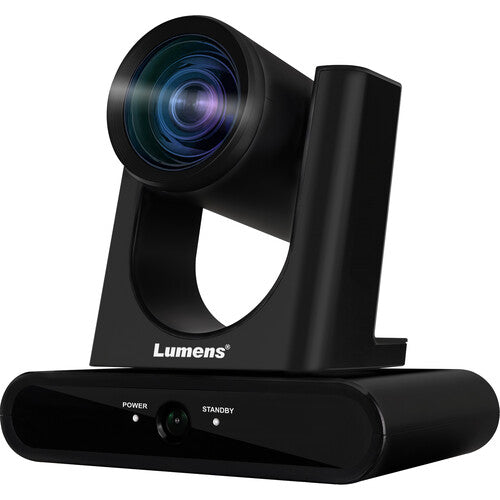

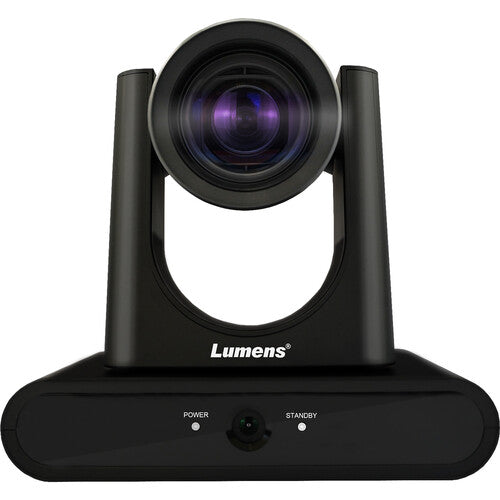

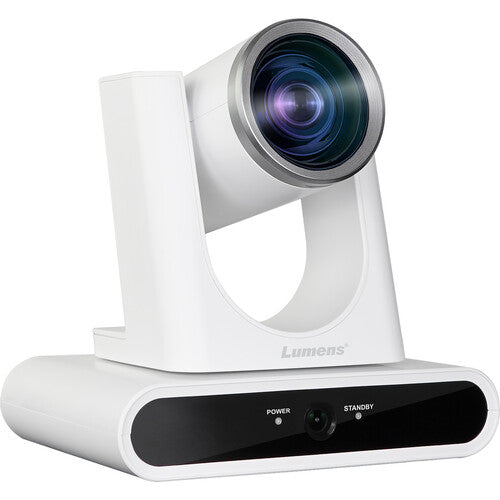

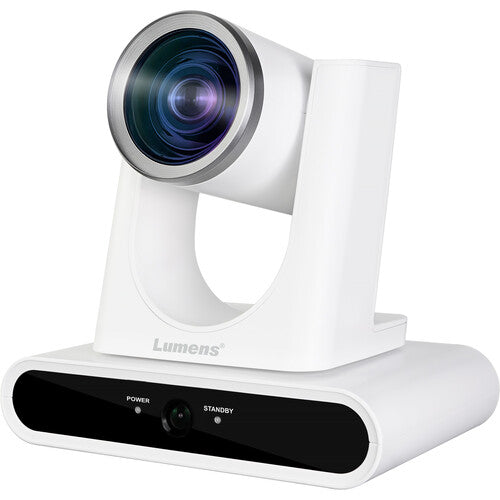

VC-TR30 Dual Optics Auto-tracking PTZ Camera with IP/HDMI and USB Interfaces

VC-TR30 Dual Optics Auto-tracking PTZ Camera with IP/HDMI and USB Interfaces

Color

Key Features

  • Sony 1/2.8" 2.16MP CMOS Sensor
  • 1080p60 via HDMI, USB-B, IP Output
  • 12x Optical Zoom, 12x Digital Zoom
  • Streaming Video Output via Ethernet
  • IP/VISCA/ONVIF/UVC/UAC Control
  • Power-over-Ethernet (PoE) Support
  • Up to 256 Presets, 3.5mm Audio Input
Add a high-quality, multifunction PTZ camera to your conference room, event space, education environment, or house of worship with the VCTR30 AI Auto-Tracking Camera with 12x Optical Zoom from Lumens. The compact camera features a 12x optical zoom lens, 12x digital zoom, and outputs simultaneously via HDMI, USB-B, or IP streaming, and it supports up to 1080p60 resolution. You can embed audio into your streams using the 3.5mm stereo analog audio input.

Automated Production

VC-TR30 is perfect for use in meeting rooms and presentations because of its intelligent auto-tracking and auto-framing modes. Both enable hands-off video capture, with the camera following a presenter or framing the shot around those in the meeting room.

Flexible Lens

The 12x zoom lens has a 72.5° horizontal field of view at its widest setting, facilitating its use in small video studios, meeting spaces, or presentations. It works in partnership with the high-sensitivity sensor to deliver high-quality video in all lighting conditions.

Gesture Control

The VC-TR30 features advanced gesture control. When the presenter raises their hands, the tracking target will switch automatically. You can also manually change the tracked subject by selecting the individual via the web interface.

Single Cable Installation

The VC-TR30's Ethernet connection is multi-purpose. When connected to a PoE-enabled switch, the network cable can transport video, power, and control signals. This makes installation extremely quick and cost-effective.

Lumens VC-TR30Specs

Key Specs

Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 2.16 Megapixel (1920 x 1080)
Shutter Speed
1/10000 to 25 Second
Optical Zoom Ratio
12x
Max Digital Zoom
12x
External Recording Modes
HDMI / RJ45 / USB
1920 x 1080p at 25/30.00/50/60.00 fps
1280 x 720 at 50/60.00 fps
Broadcast Output
NTSC
IP Streaming
H.264, MJPEG, ONVIF, RTMP, RTMPS, RTSP, SRT
1920 x 1080 at 30p, 60p
Supported Control Protocols
IP
IR
Pelco-D
Pelco-P
RS-232
VISCA
PoE Support
PoE 802.3af
Mounting
1x 1/4"-20 Female for Tripod

Imaging

Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 2.16 Megapixel (1920 x 1080)
IR Cut Filter
No
Built-In ND Filter
No
Focus Control
Autofocus
Manual Focus

Exposure Control

Shutter Speed
1/10000 to 25 Second
Signal-to-Noise Ratio
50 dB
Minimum Illumination
1 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Range: 3000 to 8000K
Presets: One Push, Indoors, Outdoors, Manual, ATW, Auto

Lens

Focal Length
3.9 to 46.8mm
Optical Zoom Ratio
12x
Max Digital Zoom
12x
Field of View
Horizontal: 72.5°
Vertical: 40.8°
Diagonal: 83.2°
Maximum Aperture
f/1.6 to 2.8
Minimum Focus Distance
Telephoto: 4.9' / 150.0 cm
Wide: 3.3' / 100.0 cm

Video Capture

External Recording Modes
HDMI / RJ45 / USB
1920 x 1080p at 25/30.00/50/60.00 fps
1280 x 720 at 50/60.00 fps
Embedded Audio
HDMI/LAN (RJ45)/USB
Audio Recording
Yes
Broadcast Output
NTSC
IP Streaming
H.264, MJPEG, ONVIF, RTMP, RTMPS, RTSP, SRT
1920 x 1080 at 30p, 60p
IP Multi-Stream Support
Simultaneous
MP4: 720p at 30p

Control

Presets
256 via IP, IR, RS-232, VISCA
Move Speed
Pan: 0.2 to 120°/sec
Tilt: 0.2 to 80°/sec
Movement Range
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Tally Light
Yes
Supported Control Protocols
IP
IR
Pelco-D
Pelco-P
RS-232
VISCA

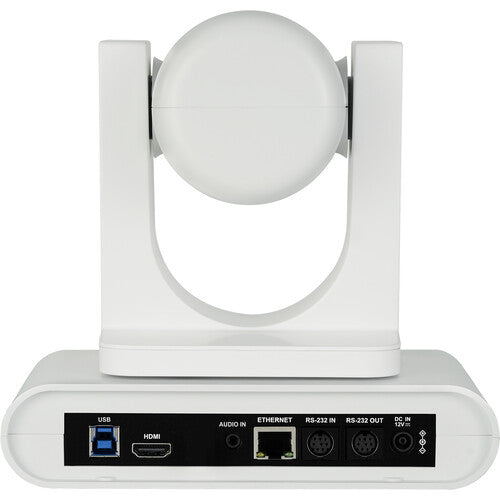

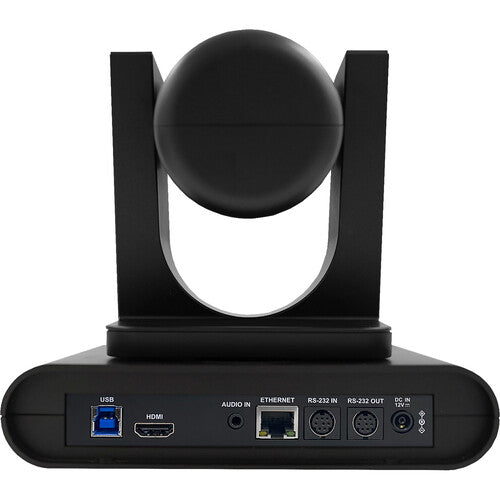

Interface

Video I/O
1x HDMI (Unspecified Signal) Output
1x USB-B 2.0 Output
1x RJ45 LAN Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O
1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Input
1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Output
1x RJ45 (LAN) Input/Output
Built-In Speaker
No

Power

PoE Support
PoE 802.3af
Power I/O
1x Barrel (12VDC) Input
Power Consumption
Device: 12 VDC 10 W
PoE: 11 W

General

Mounting
1x 1/4"-20 Female for Tripod
Environmental Resistance
No
Dimensions (W x H x D)
7.5 x 7.3 x 5.4" / 19 x 18.5 x 13.8 cm
Weight
3.3 lb / 1.5 kg (Body Only)

Packaging Info

Package Weight
5.555 lb
Box Dimensions (LxWxH)
11.7 x 10.6 x 7.9"
