VC-B30U 12x Optical Zoom USB with local HDMI output PTZ Camera - Zoom

The Lumens VC-B30U 2MP PTZ Camera is designed to support video at resolutions up to 1920 x 1080p at 60 fps. It features a 12 x optical zoom with a 3.92-47.32mm varifocal lens, f/1.8-2.8 aperture, 74° horizontal and 82° diagonal viewing angle, -100 to 100° pan, and a -30 to 30° tilt. It offers USB 3.0 and HDMI video outputs. The Lumens Control Software (free download) can be used to control the camera without a joystick controller.

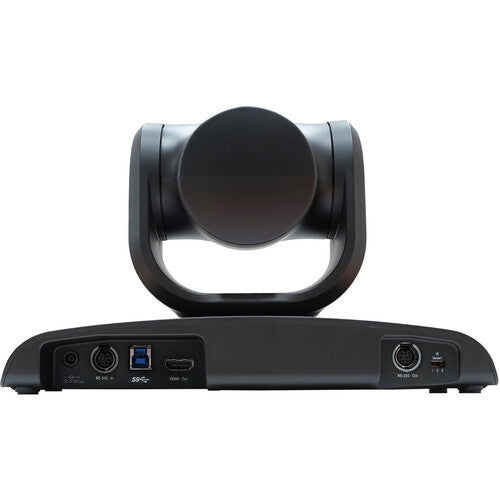

This plug-and-play camera uses standard UVC drivers and is compatible with Windows, Linux, MacOS, and Chrome OS. The VC-B30U camera has one USB interface that can work with the video conferencing software and one HDMI that can be used to output video to a second display. A remote control, power cord, power adapter, USB 3.0 cable, and HDMI cable are included.

Works with any software running on OS that supports USB 3.0 devices

Up to 128 preset settings for pan, tilt, zoom, focus, exposure, and white balance modes

Quiet, fast, and precise positioning movements

The camera's settings and PTZ control functions can be performed remotely at any location and at high communication speeds via the RS-232 interface and supports daisy-chain

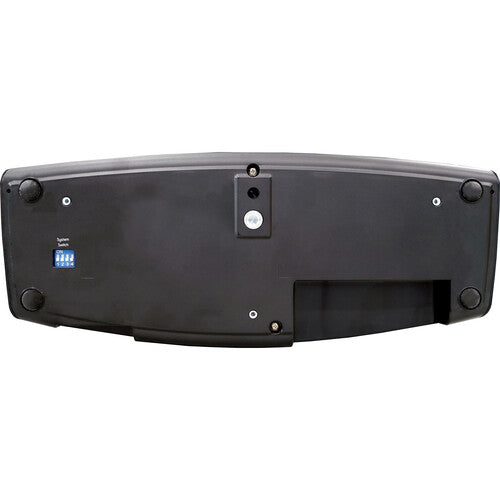

IR select DIP switch

Lumens VC-B30USpecs

Key Specs

Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	Effective: 2.07 Megapixel
Shutter Speed	1/10000 to 1 Second
Optical Zoom Ratio	12x
Max Digital Zoom	12x
External Recording Modes	HDMI 1920 x 1080p at 50/59.94 fps 1280 x 720 at 50/59.94 fps USB 1920 x 1080p at 25/29.97 fps 1280 x 720 at 25/29.97 fps
Broadcast Output	NTSC
Supported Control Protocols	RS-232

Imaging

Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	Effective: 2.07 Megapixel
Built-In ND Filter	No
Focus Control	Autofocus Manual Focus

Exposure Control

Shutter Speed	1/10000 to 1 Second
Signal-to-Noise Ratio	50 dB
Minimum Illumination	1.6 Lux
White Balance	Presets: One Push, Manual, Auto

Lens

Focal Length	3.9 to 47.3mm
Optical Zoom Ratio	12x
Max Digital Zoom	12x
Maximum Aperture	f/1.8 to 2.8
Minimum Focus Distance	Wide: 19.7" / 50.0 cm Telephoto: 47.2" / 120.0 cm

Video Capture

External Recording Modes	HDMI 1920 x 1080p at 50/59.94 fps 1280 x 720 at 50/59.94 fps USB 1920 x 1080p at 25/29.97 fps 1280 x 720 at 25/29.97 fps
Broadcast Output	NTSC
