Lumens

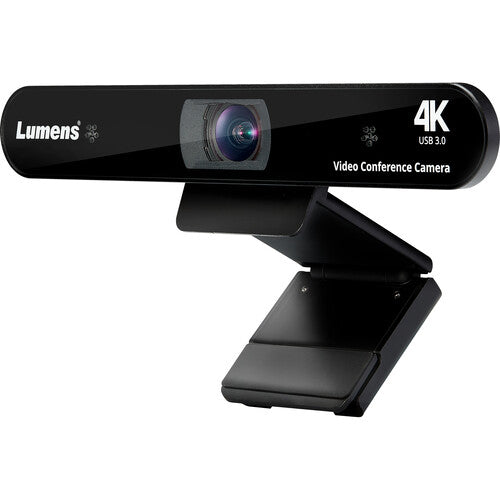

VC-B11U USB Tracking ePTZ Camera - Zoom Certified

VC-B11U USB Tracking ePTZ Camera - Zoom Certified

Key Features

  • Compact Clip-On Plug-and-Play USB Camera
  • For 3 to 10 Meeting Participants
  • Up to UHD 4K30 Video in 120° FOV
  • Hands-Free Auto Framing (1080p)
  • 16.4' Omnidirectional Mics
  • WDR
  • Up to 64 Presets
  • Remote Control Included

Lumens B11U Overview

The Lumens 4K USB Auto Framing Video Conference Webcam is a compact clip-on camera with intuitive auto features for small to mid-size meeting rooms. It clips onto your conference room display and captures up to UHD 4K30 video with audio in a wide 120° field of view, supporting 3 to 10 participants. The camera auto-frames meeting members within 16.4' so that everyone is optimally framed in the shot, and this is done hands-free so that your conference is continually enhanced. (Auto-framing is supported at 1080p resolution and below.)

Two built-in omnidirectional mics are designed to pick up human voices within 16.4'. With simple USB Type-C 3.0 connectivity, the camera can be plugged directly into your computer or touchscreen smart display and used on popular UVC platforms such as Zoom, Teams, and Skype. The included clip mount offers a 1/4"-20 tripod thread on the bottom so you can attach the camera to desktop mini tripods and various other supports.

The camera can be managed with the free-to-download Windows/Mac Lumens USB PTZ Camera Controller software or the included palm-sized remote control. You can adjust electronic pan/tilt/zoom, select from up to 64 presets, adjust brightness, and manually activate the auto-frame function.

  • Additional Features
  • 16x digital zoom
  • Wide Dynamic Range (WDR)
  • 3D/2D noise reduction
  • Auto/manual gain control, white balance, and exposure
  • Mirror/flip function
  • Compatible with Barco ClickShare Conference

Lumens B11USpecs

Sensor
1/2.8" 8.57 MP CMOS
Video Format
3840 x 2160 at 30/25 fps
1920 x 1080 at 30/25 fps
1280 x 720 at 30/25 fps
640 x 360 at 30/25 fps
Video Output
USB 3.0 Type-C
Pixel Zoom
1080p: 2x / 720p: 3x
Digital Zoom
16x
Field of View
120°
PTZ
ePTZ
Auto Framing
16.4' / 5 m Range, at 1080p or Below
Aperture
f/2.2
Focal Length
2.1mm
Shutter Speed
1/10,000 to 1/30 Second
Minimum Object Distance
19.7" / 50 cm
Video S/N Ratio
>50 dB
Minimum Illumination
10 Lux
Gain Control
Auto / Manual
White Balance
Auto / Manual / One Push
Exposure Control
Auto / Manual / Shutter Priority
WDR
Yes
3D-DNR
Yes
2D-DNR
Yes
Image Flip
Mirror / Flip
Presets
64
Control Interface
USB
Control Protocol
UVC / UAC
Video Compression
YUY2 / MJPEG / H.264 / NV12
Microphone
2 x Built-In Omnidirectional
16.4' / 5 m Pickup Range
Power Consumption
<4.5 W (5 V, 0.9 A)
Mount
Clip Mount (with 1/4"-20 Tripod Thread)
Dimensions
Without Clip: 1.2 x 8.3 x 1.4" / 30 x 210 x 35 mm
With Clip: 1.9 x 8.3 x 2.9" / 47 x 210 x 74 mm
Weight
1.1 lb / 0.5 kg

Packaging Info

Package Weight
1.18 lb
Box Dimensions (LxWxH)
12.4 x 4.7 x 3.3"
