Lumens

VC-A71SN 30x Optical Zoom, 1/1.8" CMOS, 4k/60 HDMI, 12G SDI, NDI/IP PTZ Camera

VC-A71SN 30x Optical Zoom, 1/1.8" CMOS, 4k/60 HDMI, 12G SDI, NDI/IP PTZ Camera

Color

Key Features

  • 1/1.8" 9.17MP CMOS Sensor
  • Capture up to UHD 4K Video
  • NDI|HX3 Support
  • 12G-SDI, HDMI 2.0, USB & IP Outputs
  • 30x Optical Zoom, 12x Digital Zoom
  • FreeD VR/AR Protocol
  • IP Interface with PoE++ Power & Control
  • BT.2020/Rec.709 Color Gamut
  • 3.5mm Audio Input
  • RS-232/RS-422 Serial Control

Lumens VC-A71SN Overview

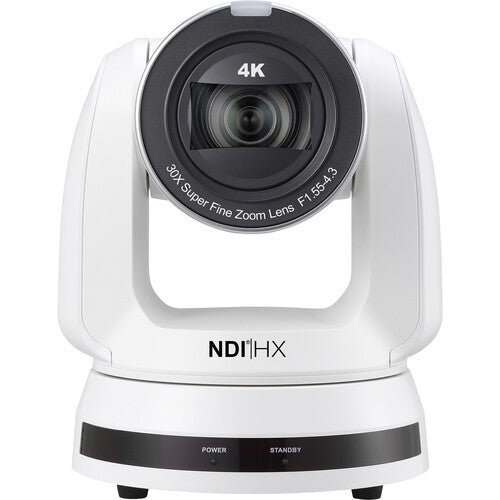

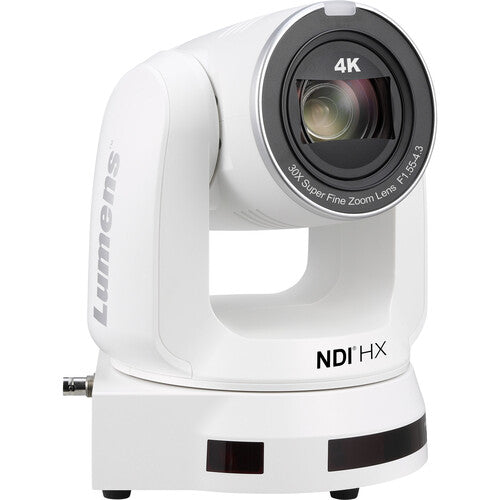

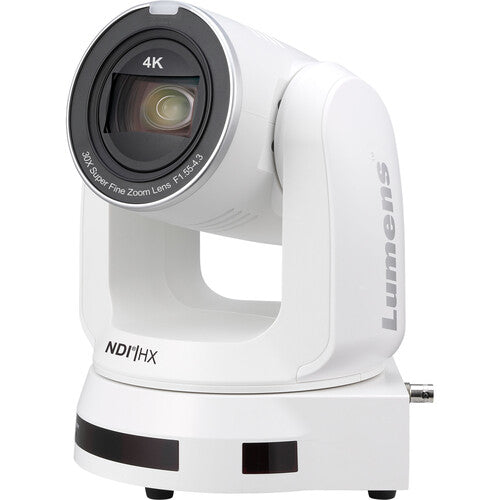

With NDI|HX3 and FreeD technology, the white VC-A71SN UHD 4K PTZ Camera from Lumens delivers UHD 4K video with professional color protocols in broadcast studios, concert halls, and VR/AR set applications. The camera's 1/1.8" 9.17MP CMOS sensor outputs UHD 4K video via its 12G-SDI, HDMI, USB-B, and IP ports. Other features of the camera's lens include 30x optical zoom and 12x digital zoom.

Control for the camera can be achieved via the USB-B 3.0, Ethernet, RS-232, or RS-422 connections or with the included remote control for flexible installation and intuitive setup. Adjust pan, tilt, and movement speed manually. A 3.5mm audio line input can add a microphone to the camera's interface. Power can be delivered via the DC input port or via Ethernet using PoE++.

Features at a Glance

  • NDI|HX3 support to deliver video with low latency directly to NDI networks
  • 12G-SDI output port delivers UHD 4K at 60 fps for fast motion and smooth video
  • BT.2020/Rec.709 color gamut for wide and precise color reproduction
  • Supports FreeD protocol for use with VR and AR video production sets without need for additional sensors
  • 340° pan, 120° tilt, 300°/sec movement speed, 256 preset positions

Lumens VC-A71SNSpecs

Key Specs

Image Sensor
1/1.8"-Type CMOS
Sensor Resolution
Effective: 9.17 Megapixel
Shutter Speed
1/10000 to 1 Second
Optical Zoom Ratio
30x
Max Digital Zoom
12x
External Recording Modes
SDI/BNC / HDMI
3840 x 2160 at 25/29.97/50/59.94 fps
1920 x 1080p at 25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
USB
3840 x 2160 at 30.00 fps
1920 x 1080p at 30.00 fps
Broadcast Output
NTSC/PAL
IP Streaming
H.264, H.265, MJPEG, MPEG-TS, NDI|HX2, NDI|HX3, RTMP, RTMPS, SRT
3840 x 2160 at 59.94p (2.0 to 20.00 Mb/s)
1920 x 1080 at 59.94p (2.0 to 20.00 Mb/s)
640 x 360 at 29.97p (0.5 to 5.0 Mb/s)
Supported Control Protocols
NDI
Pelco-D
RS-232
RS-422
VISCA
PoE Support
PoE++ 802.3bt
Mounting
1x 1/4"-20 Female for Tripod

Imaging

Image Sensor
1/1.8"-Type CMOS
Sensor Resolution
Effective: 9.17 Megapixel
Built-In ND Filter
No
Focus Control
Autofocus
Manual Focus

Exposure Control

Shutter Speed
1/10000 to 1 Second
Gain
0 to 45 dB
Signal-to-Noise Ratio
50 dB
Minimum Illumination
0.05 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Range: 1700 to 10,000K
Presets: One Push, Indoors, Outdoors, Manual, ATW, Auto

Lens

Focal Length
6.5 to 202mm
Optical Zoom Ratio
30x
Max Digital Zoom
12x
Field of View
Horizontal: 63 to 3.7°
Vertical: 35.4 to 2.1°
Diagonal: 72.3 to 4.2°
Maximum Aperture
f/1.6 to 4.8
Minimum Focus Distance
4.9' / 1.5 m

Video Capture

External Recording Modes
SDI/BNC / HDMI
3840 x 2160 at 25/29.97/50/59.94 fps
1920 x 1080p at 25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
USB
3840 x 2160 at 30.00 fps
1920 x 1080p at 30.00 fps
Embedded Audio
HDMI/NDI/USB
Audio Recording
AAC Audio
G.711 Audio
Broadcast Output
NTSC/PAL
Gamma Curve
Rec709, Rec2020, Standard
IP Streaming
H.264, H.265, MJPEG, MPEG-TS, NDI|HX2, NDI|HX3, RTMP, RTMPS, SRT
3840 x 2160 at 59.94p (2.0 to 20.00 Mb/s)
1920 x 1080 at 59.94p (2.0 to 20.00 Mb/s)
640 x 360 at 29.97p (0.5 to 5.0 Mb/s)

Control

Presets
256
Move Speed
Pan: 0.01 to 300°/sec
Tilt: 0.01 to 300°/sec
Movement Range
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Tally Light
Yes
Supported Control Protocols
NDI
Pelco-D
RS-232
RS-422
VISCA

Interface

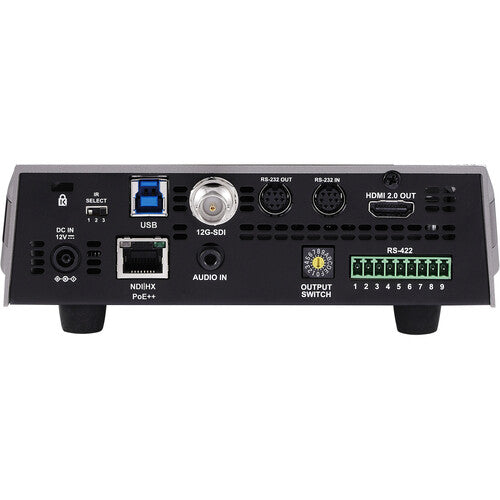

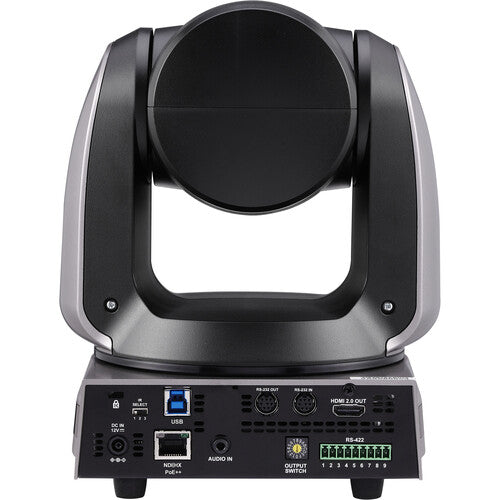

Video I/O
1x HDMI 2.0 Output
1x BNC (12G-SDI) Output
1x USB-B 3.0 / 3.1/3.2 Gen 1 Input/Output
1x RJ45 Input/Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O
1x DIN 8-Pin (RS-232) Input
1x DIN 8-Pin (RS-232) Output
1x Block 9-Pin (RS-422)
1x RJ45 (Ethernet)
1x USB-B (USB 3.2 / 3.1 Gen 1) Video

Power

PoE Support
PoE++ 802.3bt
Power I/O
1x Barrel (12VDC) Input
Power Consumption
PoE: 27.5 W
Power Supply: 27 W

General

Mounting
1x 1/4"-20 Female for Tripod
Certifications
FCC Part 15 Class A, ICES-003, EN55032
Security Lock Support
Kensington Lock Slot
Dimensions (W x H x D)
7.4 x 9.1 x 7.4" / 188 x 232 x 189 mm
Weight
6.6 lb / 3 kg (Body Only)
