Lumens

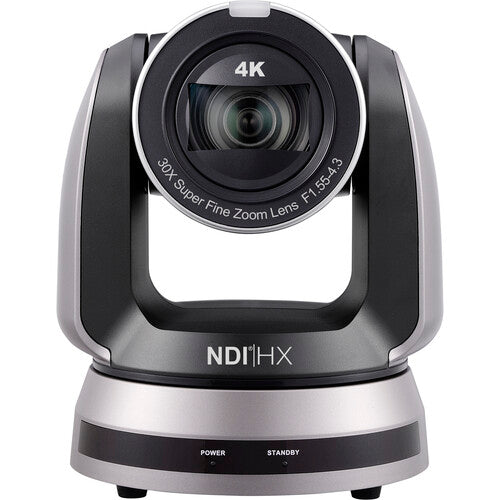

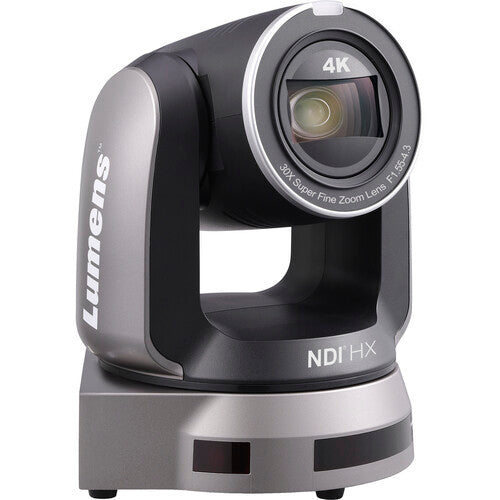

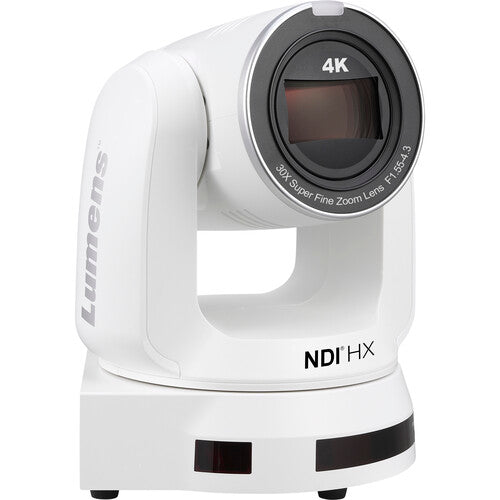

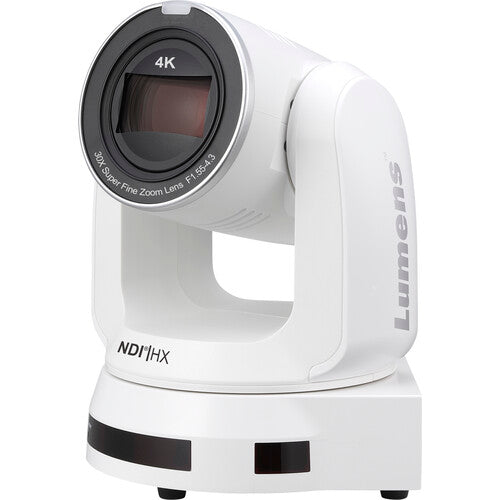

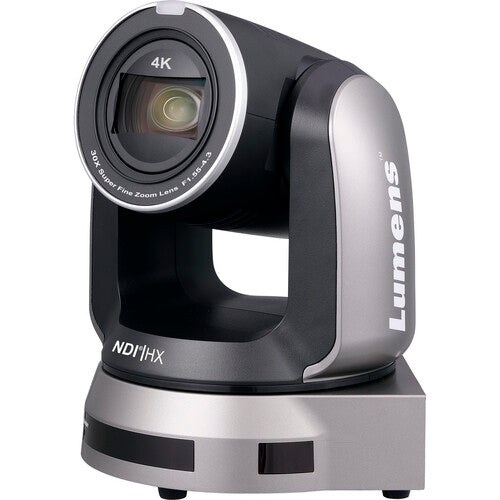

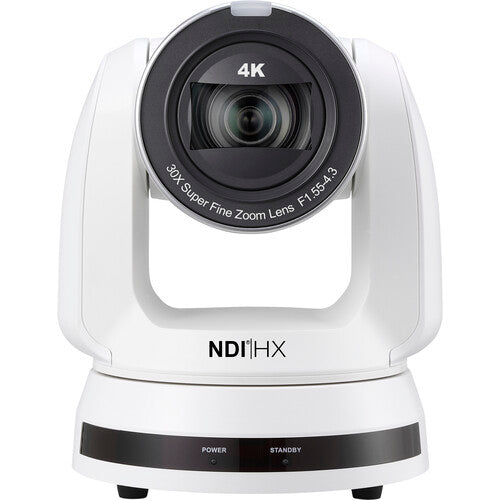

VC-A71PN 30x Optical Zoom, 1/1.8" CMOS, 4k/60 HDMI, NDI/IP PTZ Camera

Color Black White

Key Features

Capture up to UHD 4K60, 30x Optical Zoom
1/1.8" Sony CMOS Sensor
HDMI and Ethernet Outputs
NDI|HX High-Quality, Low-Latency Video

Lumens VC-A71P Overview

The VC-A71PN 4K60 NDI|HX/HDMI PTZ Camera with 30x Optical Zoom from Lumens is equipped with a professional 1/1.8" CMOS sensor that delivers a superb clear image and natural color reproduction. Its superior 30x optical zoom lens captures every detail even in low-light conditions. The VC-A71PN supports NDI|HX that delivers high-quality video with ultra-low latency for your video production. The camera has Ethernet and HDMI outputs. It is applicable for use in a broadcasting studio, conference room, house of worship, etc.

Lumens VC-A71PSpecs

Key Specs

Image Sensor	1/1.8"-Type CMOS
Sensor Resolution	Effective: 9.17 Megapixel (3840 x 2160)
Shutter Speed	1/10000 to 1 Second
Optical Zoom Ratio	30x
Max Digital Zoom	12x
External Recording Modes	HDMI / RJ45 3840 x 2160 at 25/29.97/50/59.94 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps
Broadcast Output	NTSC
IP Streaming	H.264 3840 x 2160 1920 x 1080 480 x 360
Supported Control Protocols	IP IR Pelco-D Pelco-P RS-232 RS-485 VISCA
PoE Support	PoE++ 802.3bt

Imaging

Image Sensor	1/1.8"-Type CMOS
Sensor Resolution	Effective: 9.17 Megapixel (3840 x 2160)
Built-In ND Filter	No
Focus Control	Autofocus

Exposure Control

Shutter Speed	1/10000 to 1 Second
Signal-to-Noise Ratio	50 dB
Minimum Illumination	0.5 Lux
Flip / Mirror Support	Image Flip, Mirror (Vertical)
White Balance	Range: 2800 to 7000K

Lens

Focal Length	6.5 to 202mm
Optical Zoom Ratio	30x
Max Digital Zoom	12x
Field of View	Horizontal: 63 to 3.7° Vertical: 35.4 to 2.1° Diagonal: 72.3 to 4.2°
Maximum Aperture	f/1.6 to 4.8
Minimum Focus Distance	Wide: 59.1" / 1.5 m Telephoto: 59.1" / 1.5 m

Video Capture

External Recording Modes	HDMI / RJ45 3840 x 2160 at 25/29.97/50/59.94 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps
Broadcast Output	NTSC
Gamma Curve	Rec709, Rec2020, Standard
IP Streaming	H.264 3840 x 2160 1920 x 1080 480 x 360

Control

Presets	10 via IR 255 via IP
Movement Range	Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°)
Tally Light	Yes
Supported Control Protocols	IP IR Pelco-D Pelco-P RS-232 RS-485 VISCA

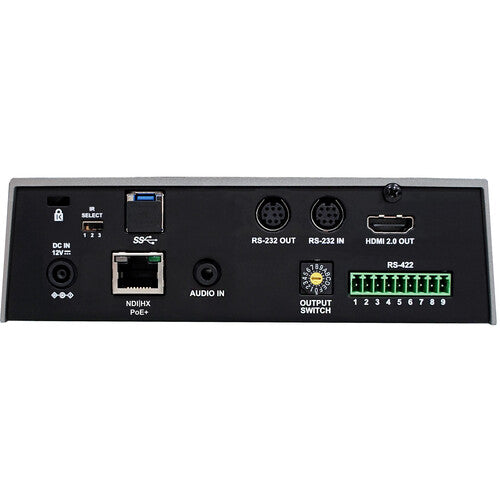

Interface

Video I/O	1x HDMI 2.0 Output 1x RJ45 (NDI) Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O	1x Mini-DIN 8-Pin (RS-232) Input 1x Mini-DIN 8-Pin (RS-232) Output 1x Block 9-Pin (RS-422) Input
Built-In Speaker	No

Power

PoE Support	PoE++ 802.3bt
Power I/O	1x Barrel (12VDC) Input
Power Consumption	Device: 16 W PoE: 17.5 W

General

Certifications	FCC Part 15 Class A, ICES-003, EN 55032
Dimensions (W x H x D)	7.4 x 9.1 x 7.4" / 18.9 x 23.2 x 18.8 cm
Weight	6.6 lb / 3 kg (Body Only)
