Lumens

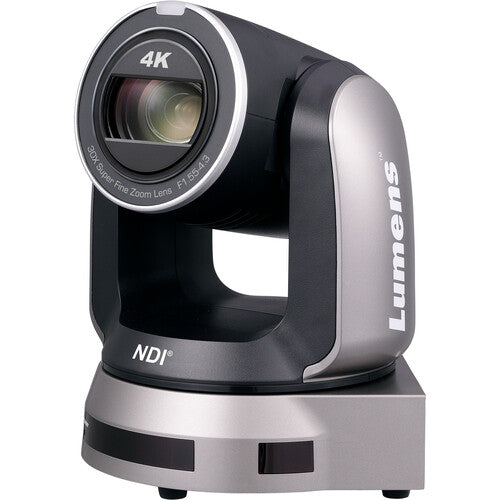

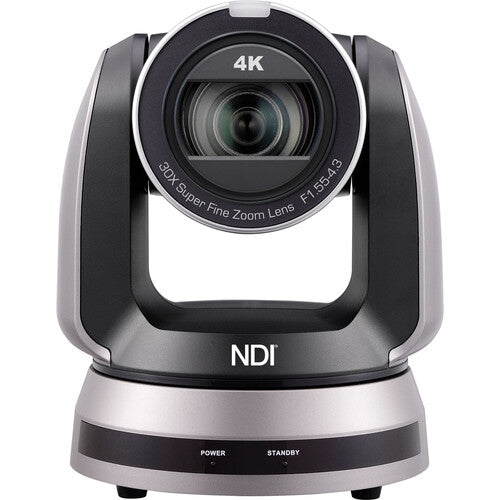

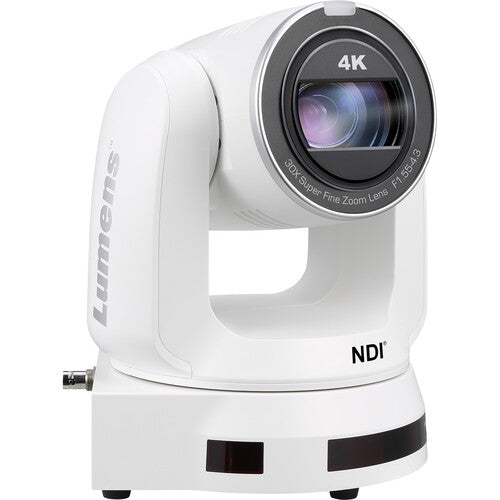

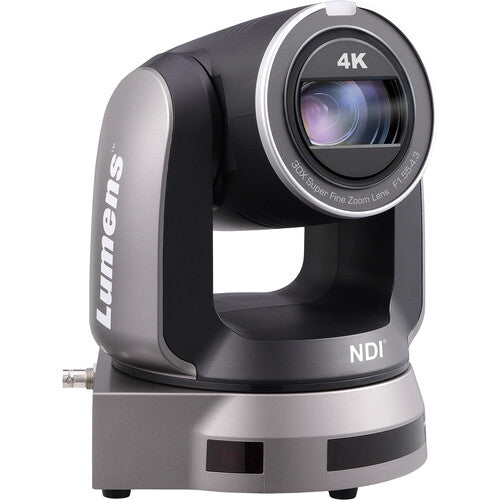

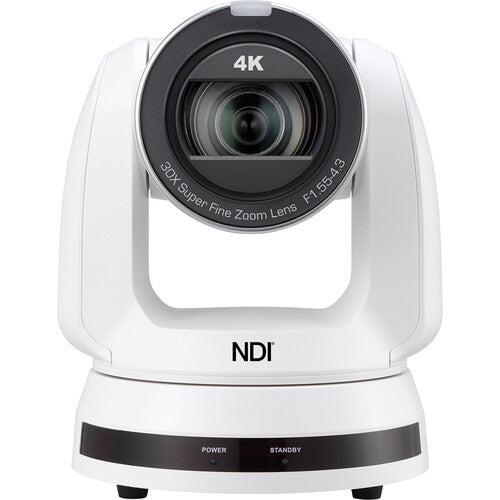

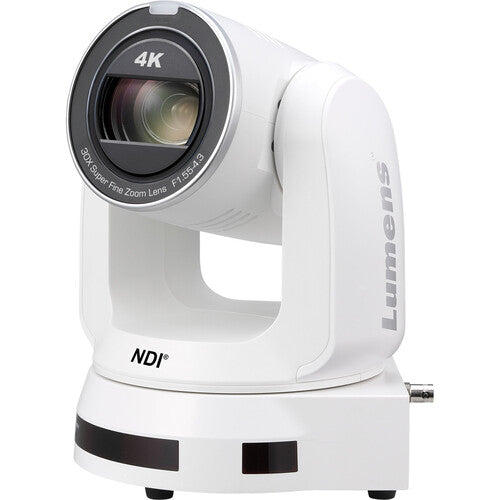

VC-A71P-HN 30x Optical Zoom, 1/1.8" CMOS, 4k/60 HDMI, 12G SDI, Full NDI/NDI|HX3/IP PTZ Camera
VC-A71P-HN 30x Optical Zoom, 1/1.8" CMOS, 4k/60 HDMI, 12G SDI, Full NDI/NDI|HX3/IP PTZ Camera
Key Features
- 1/1.8" 9.17MP CMOS Sensor
- Capture up to UHD 4K Video
- NDI|HX, Genlock Support
- 12G/3G-SDI, HDMI, USB & IP Outputs
- 30x Optical Zoom, 12x Digital Zoom
- FreeD VR/AR Protocol
- IP Interface with PoE++ Power & Control
- BT.2020/Rec.709 Color Gamut
- 3.5mm Audio Input
- RS-232/RS-422 Serial Control
Lumens VC-A71P-HN Overview
With full NDI bandwidth and NDI|HX3 technology, the VC-A71P-HN UHD 4K NDI PTZ Camera from Lumens delivers UHD 4K video with professional color protocols in TV video production, VR/AR, and broadcast applications. The camera's 1/1.8" 9.17MP CMOS sensor outputs UHD 4K video via dual 12G & 3G-SDI, HDMI, USB-B, and IP ports. Other features of the camera's lens include 30x optical and 12x digital zoom.
Control is achieved via the USB-B, Ethernet, RS-232, or RS-422 connections or with the included remote control for flexible installation and intuitive setup. Adjust pan, tilt, and movement speed manually. A 3.5mm audio line input can add a microphone to the camera's interface. Power can be delivered via the DC input port or via Ethernet using PoE++.
Features at a Glance
- NDI|HX3 and high-bandwidth NDI simultaneous output support to deliver video with low latency directly to NDI networks
- Dual 12G-SDI/3G-SDI ports and a Genlock connector synchronize broadcast equipment
- BT.2020/Rec.709 color gamut for wide and precise color reproduction
- Supports FreeD protocol for use with VR and AR video production sets without need for additional sensors
- 340° pan, 120° tilt, 300°/sec movement speed, 256 preset positions
Lumens VC-A71P-HNSpecs
Key Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 9.17 Megapixel
|
| Shutter Speed |
1/10000 to 1 Second
|
| Optical Zoom Ratio |
30x
|
| Max Digital Zoom |
12x
|
| External Recording Modes |
SDI/BNC / HDMI
3840 x 2160 at 25/29.97/50/59.94 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps USB 3840 x 2160 at 30.00 fps 1920 x 1080p at 30.00 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264, H.265, MJPEG, MPEG-TS, NDI, NDI|HX, RTMP, RTMPS, SRT
3840 x 2160 at 59.94p (2.0 to 20.00 Mb/s) 1920 x 1080 at 59.94p (2.0 to 20.00 Mb/s) 640 x 360 at 29.97p (0.5 to 5.0 Mb/s) |
| Supported Control Protocols |
NDI
Pelco-D RS-232 RS-422 VISCA |
| PoE Support |
PoE++ 802.3bt
|
| Mounting |
1x 1/4"-20 Female for Tripod
|
Imaging
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 9.17 Megapixel
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Speed |
1/10000 to 1 Second
|
| Gain |
0 to 45 dB
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
0.05 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Range: 1700 to 10,000K
Presets: One Push, Indoors, Outdoors, Manual, ATW, Auto |
Lens
| Focal Length |
6.5 to 202mm
|
| Optical Zoom Ratio |
30x
|
| Max Digital Zoom |
12x
|
| Field of View |
Horizontal: 63 to 3.7°
Vertical: 35.4 to 2.1° Diagonal: 72.3 to 4.2° |
| Maximum Aperture |
f/1.6 to 4.8
|
| Minimum Focus Distance |
4.9' / 1.5 m
|
Video Capture
| External Recording Modes |
SDI/BNC / HDMI
3840 x 2160 at 25/29.97/50/59.94 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps USB 3840 x 2160 at 30.00 fps 1920 x 1080p at 30.00 fps |
| Embedded Audio |
HDMI/NDI/USB
|
| Audio Recording |
AAC Audio
G.711 Audio |
| Broadcast Output |
NTSC/PAL
|
| Gamma Curve |
Rec709, Rec2020, Standard
|
| IP Streaming |
H.264, H.265, MJPEG, MPEG-TS, NDI, NDI|HX, RTMP, RTMPS, SRT
3840 x 2160 at 59.94p (2.0 to 20.00 Mb/s) 1920 x 1080 at 59.94p (2.0 to 20.00 Mb/s) 640 x 360 at 29.97p (0.5 to 5.0 Mb/s) |
Control
| Presets |
256
|
| Move Speed |
Pan: 0.01 to 300°/sec
Tilt: 0.01 to 300°/sec |
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°) |
| Tally Light |
Yes
|
| Supported Control Protocols |
NDI
Pelco-D RS-232 RS-422 VISCA |

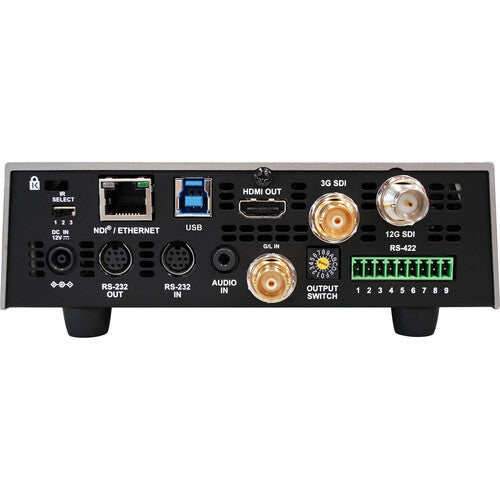

Interface
| Video I/O |
1x HDMI Output
1x BNC (3G-SDI) Output 1x BNC (12G-SDI) Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Input/Output 1x RJ45 Input/Output |
| Other I/O |
1x BNC (Genlock) Input
1x DIN 8-Pin (RS-232) Input 1x DIN 8-Pin (RS-232) Output 1x Block 9-Pin (RS-422) |
Power
| PoE Support |
PoE++ 802.3bt
|
| Power I/O |
1x Barrel (12VDC) Input
|
| Power Consumption |
40 W
|
General

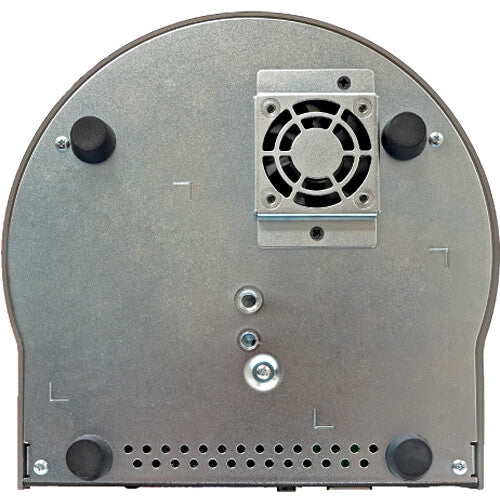

| Mounting |
1x 1/4"-20 Female for Tripod
|
| Certifications |
FCC Part 15 Class A, ICES-003, EN55032
|
| Security Lock Support |
Kensington Lock Slot
|
| Dimensions (W x H x D) |
7.4 x 9.1 x 7.4" / 188 x 232 x 189 mm
|
| Weight |
6.6 lb / 3 kg (Body Only)
|
