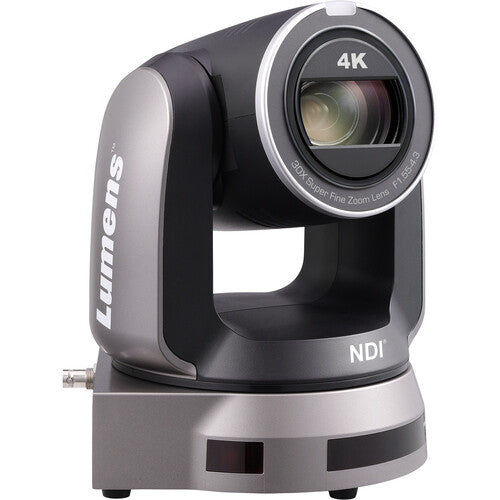

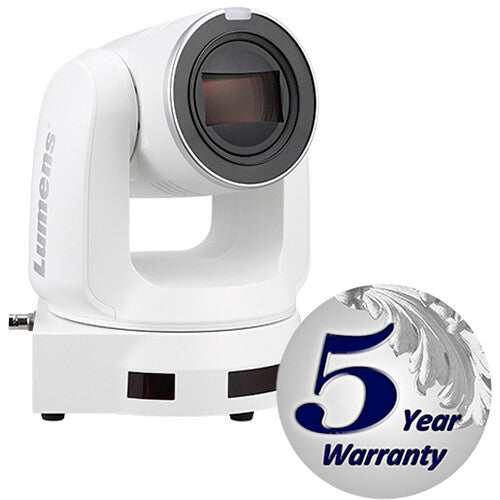

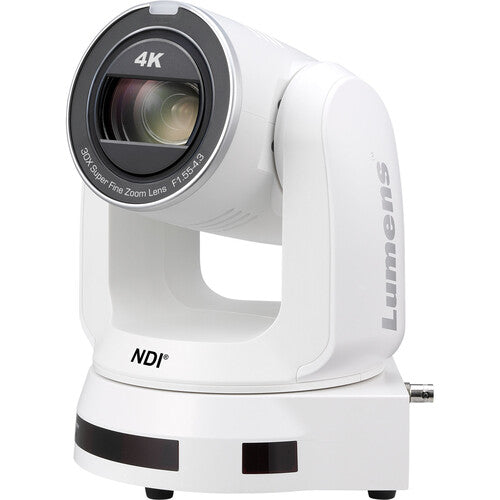

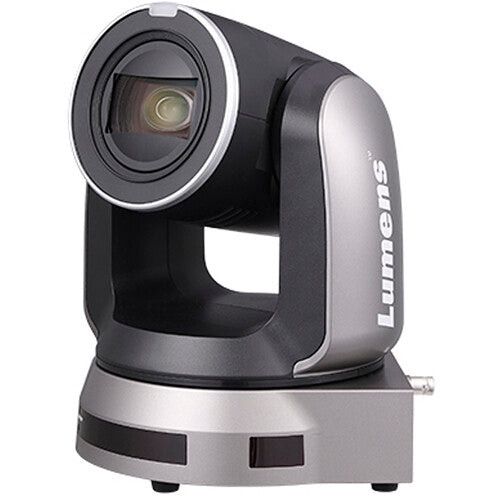

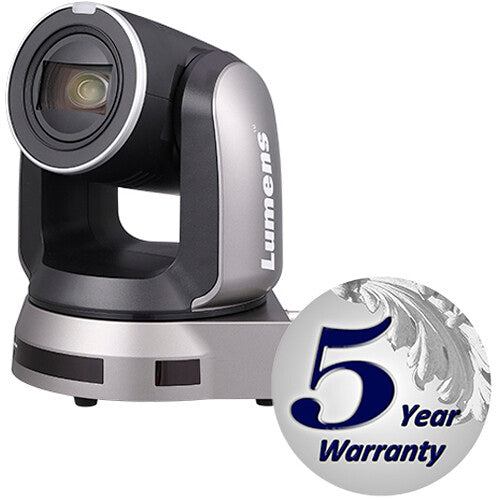

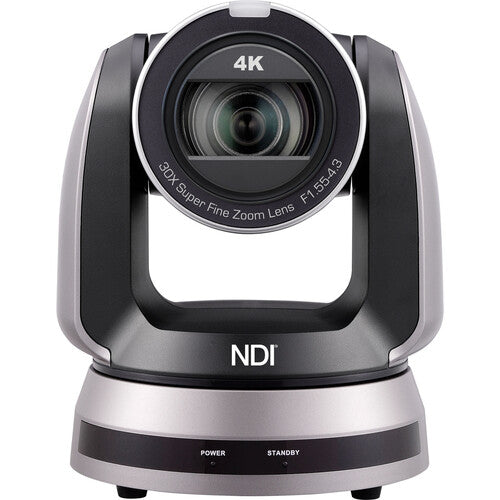

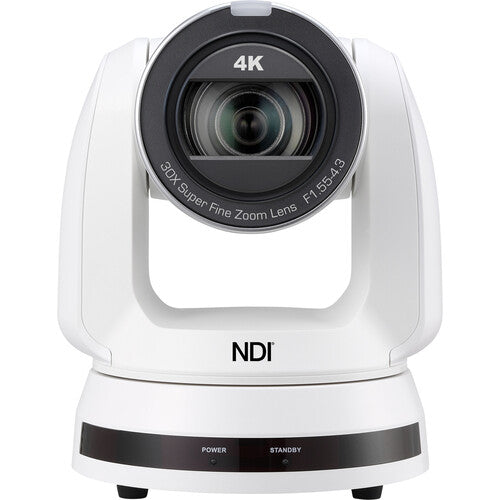

The VC-A71P 4K60 IP PTZ Camera with 30x Optical Zoom from Lumens is equipped with a professional 1/1.8" image sensor that delivers a superiorly clear and vivid live image. The 30x optical zoom lens, excellent white balance, and exposure mode deliver fine details, even in low light or the extreme contrast of brightness and darkness of a conference room. The camera covers wide shooting angles and achieves high-speed, quiet, and precise positioning with smooth PTZ operations. It supports live broadcasting with H.264, HEVC (H.265), and MJPEG format with low latency. The VC-A71P is a practical solution for lecture recording, videoconferencing, and live broadcasting applications.
Lumens VC-A71PSpecs
Key Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 9.17 Megapixel (3840 x 2160)
|
| Shutter Speed |
1/10000 to 1 Second
|
| Optical Zoom Ratio |
30x
|
| Max Digital Zoom |
12x
|
| External Recording Modes |
SDI/BNC / HDMI / RJ45 / USB
3840 x 2160 at 25/29.97/50/59.94 fps
1920 x 1080p at 25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 25/29.97/50/59.94 fps
|
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, MJPEG, MPEG-TS, RTMP, RTMPS, RTSP, SRT
3840 x 2160 at 30p, 59.94p
1920 x 1080 at 30p, 59.94p
640 x 360 at 29.97p
|
| Supported Control Protocols |
IP
IR
Pelco-D
Pelco-P
RS-232
RS-485
VISCA
|
| PoE Support |
PoE++ 802.3bt
|
| Mounting |
1x 1/4"-20 Female for Tripod
7x M3 Female for Ceiling
|
Imaging
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 9.17 Megapixel (3840 x 2160)
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
|
Exposure Control
| Shutter Speed |
1/10000 to 1 Second
|
| Gain |
0 to 45 dB
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
0.5 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Range: 1700 to 10,000K
Presets: One Push, Indoors, Outdoors, Manual, ATW, Auto
|
Lens
| Focal Length |
6.5 to 202mm
|
| Optical Zoom Ratio |
30x
|
| Max Digital Zoom |
12x
|
| Field of View |
Horizontal: 63°
Vertical: 35.4°
Diagonal: 72.3°
|
| Maximum Aperture |
f/1.6 to 4.8
|
| Minimum Focus Distance |
Wide: 59.1" / 1.5 m
Telephoto: 59.1" / 1.5 m
|
Video Capture
| External Recording Modes |
SDI/BNC / HDMI / RJ45 / USB
3840 x 2160 at 25/29.97/50/59.94 fps
1920 x 1080p at 25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 25/29.97/50/59.94 fps
|
| Audio Recording |
G.711 Audio
|
| Broadcast Output |
NTSC
|
| Gamma Curve |
Rec709, Rec2020, Standard
|
| IP Streaming |
H.264, H.265, MJPEG, MPEG-TS, RTMP, RTMPS, RTSP, SRT
3840 x 2160 at 30p, 59.94p
1920 x 1080 at 30p, 59.94p
640 x 360 at 29.97p
|
Control
| Presets |
10 via IR
255 via IP
|
| Move Speed |
Pan: 300°/sec
Tilt: 300°/sec
|
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
|
| Tally Light |
Yes
|
| Supported Control Protocols |
IP
IR
Pelco-D
Pelco-P
RS-232
RS-485
VISCA
|

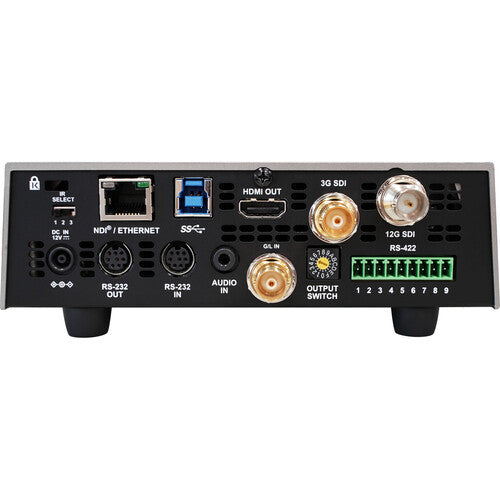

Interface
| Video I/O |
1x BNC (12G-SDI) Output
1x HDMI 2.0 Output
1x RJ45 Output
1x USB-B (Composite) Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
|
| Other I/O |
1x Mini-DIN 8-Pin (RS-232) Input
1x Mini-DIN 8-Pin (RS-232) Output
1x Block 9-Pin (RS-422)
|
| Built-In Speaker |
No
|
Power
| PoE Support |
PoE++ 802.3bt
|
| Power I/O |
1x Barrel (12VDC) Input
|
| Power Consumption |
Device: 27 W
PoE: 27.5 W
|
General

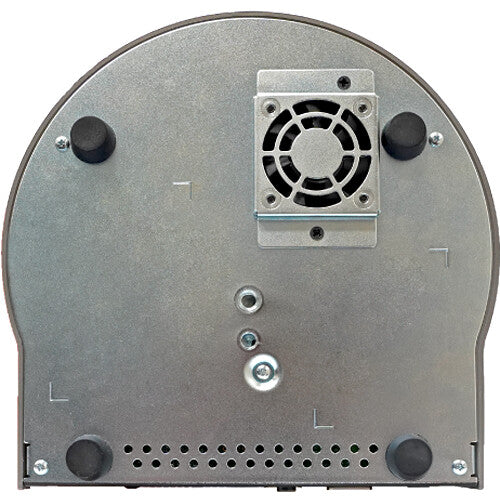

| Mounting |
1x 1/4"-20 Female for Tripod
7x M3 Female for Ceiling
|
| Certifications |
FCC Part 15 Class A, ICES-003, EN 55032
|
| Dimensions (W x H x D) |
7.4 x 9.1 x 7.4" / 18.9 x 23.2 x 18.8 cm
|
| Weight |
6.6 lb / 3 kg (Body Only)
|
Packaging Info
| Package Weight |
10.875 lb
|
| Box Dimensions (LxWxH) |
16.9 x 12.9 x 10.3"
|
