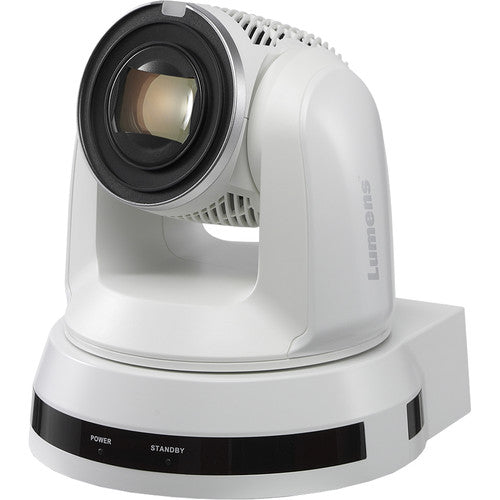

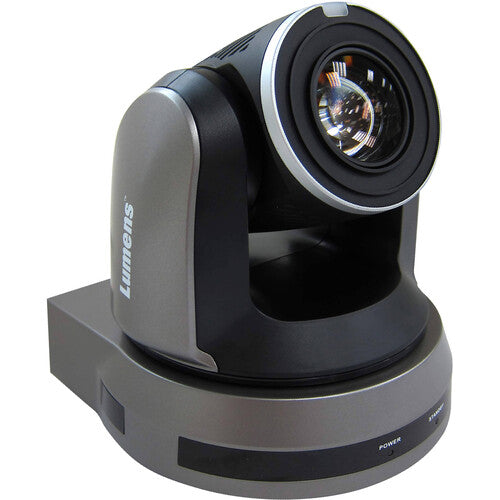

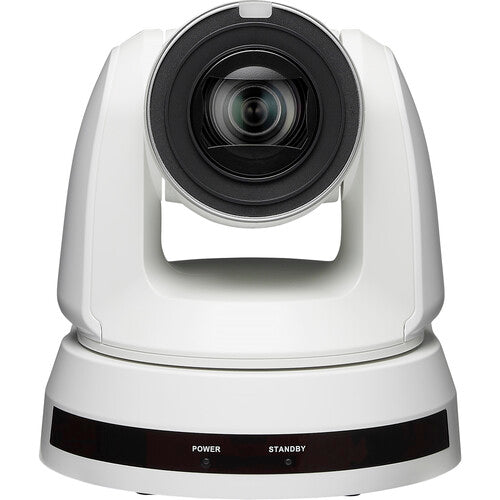

VC-A61P 30x Optical Zoom, 1/2.5" CMOS 4k/30 HDMI, 3G SDI, IP PTZ Camera
VC-A61P 30x Optical Zoom, 1/2.5" CMOS 4k/30 HDMI, 3G SDI, IP PTZ Camera
Key Features
- Capture Video up to UHD 4K30 &1080p60
- 1/2.5" 8.57MP CMOS Sensor
- 30x Optical Zoom/12x Digital Zoom
- 4.6-135mm Zoom Lens, f/1.6-3.4 Aperture
- IP Interface with PoE+ Power and Control
- Simultaneous HDMI/IP/3G-SDI Output
- 256 Preset Positions, Audio Input
- RS-232 / RS-422 / IP Control Interface
- ONVIF, VISCA, and Pelco-D Protocols
- WDR, Image Flip, 3D NR, Tally Light
Lumens VC-A61P Overview
Add a PTZ camera to your auditorium, lecture hall, meeting room, house of worship, or production environment with this 4K IP PTZ Video Camera with 30x Optical Zoom from Lumens. This video conference camera features a 30x optical and 12x digital zoom lens so you can focus in on every inch of large rooms and areas, and it fits into professional video productions thanks to its tally light.
The camera's 1/2.5" 8.57MP CMOS sensor offers crisp clear video for output up to 4K30, and it can output to your recorder, switcher, or stream over IP using its multiple outputs. Its 3G-SDI, HDMI, and RJ45 outputs offer video resolutions up to 4K30 or 1080p60, and you can simultaneously output up to three video streams in multiple resolutions in common HEVC or H.264 formats. It incorporates a silent motor for high-speed, quiet pans, tilts, and zooms. Using its RS-232, RS-422, IR remote, and Ethernet LAN connectivity, you can program up to 256 position presets using serial or IP control.
You can power the camera via a PoE+ supported network to save cabling, or power it using the included power supply. The camera supports audio input to add a mic or line source to your production. The image flip feature allows you to mount the camera on a wall or ceiling using the included mounting hardware. An RS-422 adapter and IR remote control are also included.
Key Features
- Supports PoE+ (Power-over-Ethernet) using network cables to supply power.
- 30x optical zoom, 68° horizontal field of view.
- Audio input supports AAC / G.711 encoding with 44.1 kHz / 48 kHz sampling frequency.
- Free Lumens VMS software for controlling the cameras remotely from a local area network.
UHD 4K30 and FHD 1080p Resolution
4K and 1080p resolution choices make the VC-A61P more flexible for different shooting purposes. With its 4K UHD ultra-clear video quality, you can enjoy detailed, crystal-clear views, even in low light.
Supports Ethernet, HDMI, and 3G-SDI Outputs
Triple Stream Video with Support for HEVC / H.264
Lumens VC-A61PSpecs
Key Specs
| Image Sensor |
1/2.5"-Type CMOS
|
| Sensor Resolution |
Effective: 8.57 Megapixel
|
| Shutter Speed |
1/10000 to 1 Second
|
| Optical Zoom Ratio |
30x
|
| Max Digital Zoom |
12x
|
| External Recording Modes |
SDI/BNC / HDMI / RJ45
3840 x 2160 at 25/29.97 fps SDI/BNC / HDMI / RJ45 1920 x 1080p at 25/29.97/50/59.94 fps 1280 x 720 at 25/50/59.94 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, MPEG-TS, RTMP, RTMPS, RTP, RTSP, SRT
3840 x 2160 at 29.97p (2.0 to 20.00 Mb/s) 1920 x 1080 at 59.94p (2.0 to 20.00 Mb/s) 640 x 360 at 29.97p (0.51 to 5.0 Mb/s) |
| Supported Control Protocols |
IP
IR Pelco-D RS-232 VISCA |
| PoE Support |
PoE+ 802.3at
|
| Mounting |
7x M3 Female for Ceiling
1x 1/4"-20 Female for Tripod |
Imaging
| Image Sensor |
1/2.5"-Type CMOS
|
| Sensor Resolution |
Effective: 8.57 Megapixel
|
| IR Cut Filter |
No
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Speed |
1/10000 to 1 Second
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
0.1 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Range: 1700 to 10,000K
Presets: One Push, Indoors, Outdoors, Manual, ATW, Auto |
Lens
| Focal Length |
4.6 to 135mm
|
| Optical Zoom Ratio |
30x
|
| Max Digital Zoom |
12x
|
| Field of View |
Horizontal: 68°
Vertical: 38.8° Diagonal: 78° |
| Maximum Aperture |
f/1.6 to 3.4
|
| Minimum Focus Distance |
Wide: 59.1" / 1.5 m
|
Video Capture
| External Recording Modes |
SDI/BNC / HDMI / RJ45
3840 x 2160 at 25/29.97 fps SDI/BNC / HDMI / RJ45 1920 x 1080p at 25/29.97/50/59.94 fps 1280 x 720 at 25/50/59.94 fps |
| Audio Recording |
G.711 Audio
|
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, MPEG-TS, RTMP, RTMPS, RTP, RTSP, SRT
3840 x 2160 at 29.97p (2.0 to 20.00 Mb/s) 1920 x 1080 at 59.94p (2.0 to 20.00 Mb/s) 640 x 360 at 29.97p (0.51 to 5.0 Mb/s) |
Control
| Presets |
256 via IP, IR, RS-232, VISCA
|
| Move Speed |
Pan: 300°/sec
Tilt: 300°/sec |
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°) |
| Tally Light |
Yes
|
| Supported Control Protocols |
IP
IR Pelco-D RS-232 VISCA |

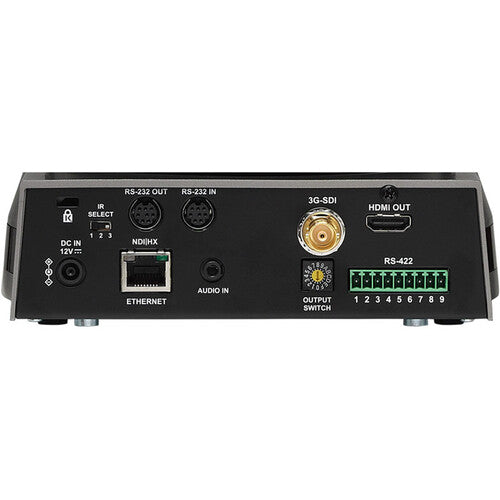

Interface
| Video I/O |
1x HDMI Output
1x BNC (3G-SDI) Output 1x RJ45 Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
|
| Other I/O |
1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Input
1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Output 1x Block 9-Pin (RS-422) Input 1x RJ45 (LAN) Control |
| Built-In Speaker |
No
|
Power
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x Barrel (12VDC) Input
|
| Power Consumption |
Power Supply: 16 W
PoE: 18 W |
General
| Mounting |
7x M3 Female for Ceiling
1x 1/4"-20 Female for Tripod |
| Certifications |
FCC Part 15 Class A, ICES-003, EN 55032
|
| Dimensions (W x H x D) |
6.9 x 7.5 x 7.4" / 17.4 x 19 x 18.7 cm
|
| Weight |
4.4 lb / 2 kg (Body Only)
|
Packaging Info
| Package Weight |
8.175 lb
|
| Box Dimensions (LxWxH) |
12.5 x 10.7 x 10.4"
|
