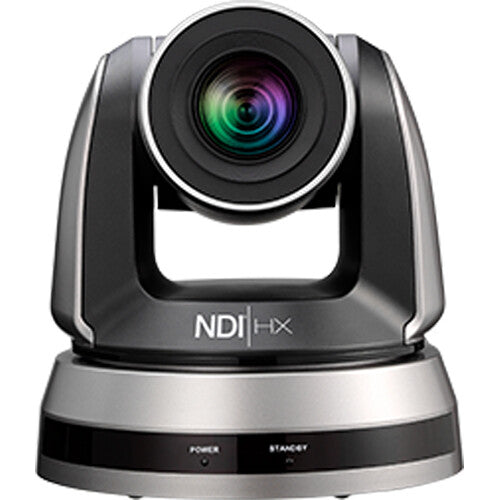

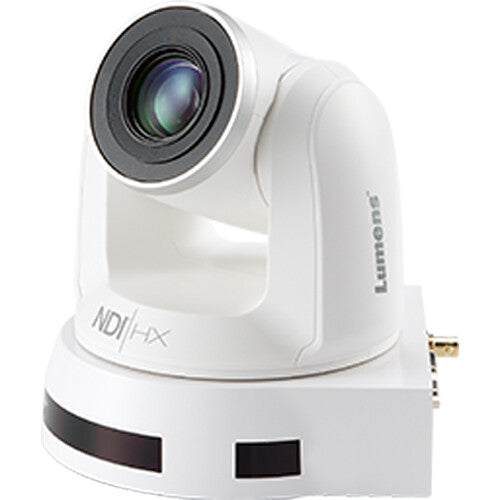

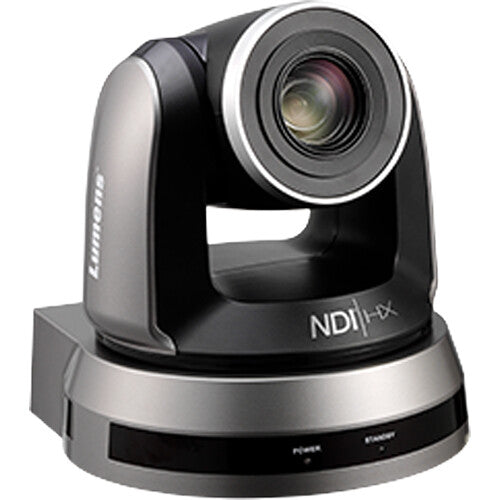

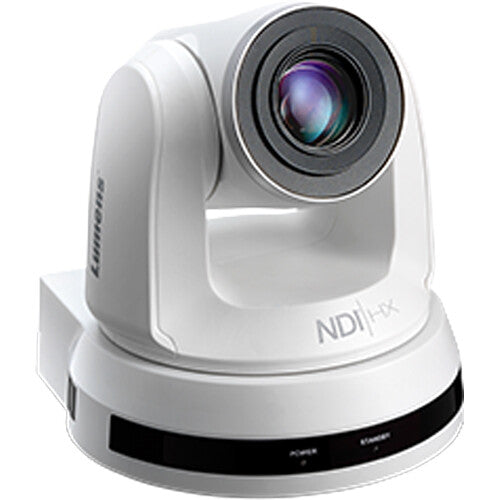

VC-A51PN 20x Optical Zoom NDI/IP/3GSDI/HDMI PTZ Camera
VC-A51PN 20x Optical Zoom NDI/IP/3GSDI/HDMI PTZ Camera
Key Features
- Simultaneous 3G-SDI, HDMI, NDI Output
- 1/2.8" CMOS Sensor
- 1080p60 Resolution
- 20x Optical Zoom
- IP/RS-232/422 Serial Control
- PoE+ Support
Lumens VC-A51P Overview
Integrate the Lumens VC-A51PN 1080p60 PTZ Camera with NDI|HX and 20x optical zoom into your AV broadcast or IP live production setup for distribution and control over Ethernet network connection. Efficiently capture your next conference or live performance with simultaneous 3G-SDI, HDMI, and NDI video outputs. A 1/2.8" CMOS sensor adds a wide dynamic range, 3D noise reduction, advanced autofocus, and auto white balance to your broadcast. Stream 1080p60 video with low latency to platforms like YouTube, Twitch, or Facebook without the need for additional hardware or software.
Control over the 20x optical zoom and pan and tilt movements can be achieved via NDI tools or hardware controllers thanks to the camera's RS-232, RS-422, and IP serial control compatibility. The device can be powered through Ethernet connection via PoE+ or via the DC input for flexible installation in your preexisting workflow.
Camera Control
- RS-232 and RS-422 support allows for connection to a wide range of products
- NDI, VISCA, VISCAIP, PELCO-D, and ONVIF protocols
- Supports IR remote control
Lumens VC-A51PSpecs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.16 Megapixel
|
| Shutter Speed |
1/10000 to 1 Second
|
| Optical Zoom Ratio |
20x
|
| External Recording Modes |
SDI/BNC / HDMI
1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, MJPEG, NDI|HX, RTMP, RTMPS, RTSP, SRT
1920 x 1080 at 30p, 60p |
| Supported Control Protocols |
IP
NDI Pelco-D VISCA |
| PoE Support |
PoE+ 802.3at
|
| Mounting |
1x 1/4"-20 Female for Tripod
|
Imaging
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.16 Megapixel
|
| IR Cut Filter |
No
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Speed |
1/10000 to 1 Second
|
| Precise Scan Rate Control |
No
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
1 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Range: 2800 to 10,000K
Presets: One Push, Indoors, Outdoors, Manual, ATW, Auto |
Lens
| Focal Length |
5.3 to 110mm
|
| Optical Zoom Ratio |
20x
|
| Field of View |
Horizontal: 57°
Vertical: 32.1° Diagonal: 65.4° |
| Maximum Aperture |
f/1.6 to 3.8
|
| Minimum Focus Distance |
Wide: 59.1" / 1.5 m
Telephoto: 59.1" / 1.5 m |
Video Capture
| External Recording Modes |
SDI/BNC / HDMI
1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, MJPEG, NDI|HX, RTMP, RTMPS, RTSP, SRT
1920 x 1080 at 30p, 60p |
Control
| Presets |
128
|
| Move Speed |
Pan: 300°/sec
Tilt: 300°/sec |
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°) |
| Tally Light |
Yes
|
| Supported Control Protocols |
IP
NDI Pelco-D VISCA |

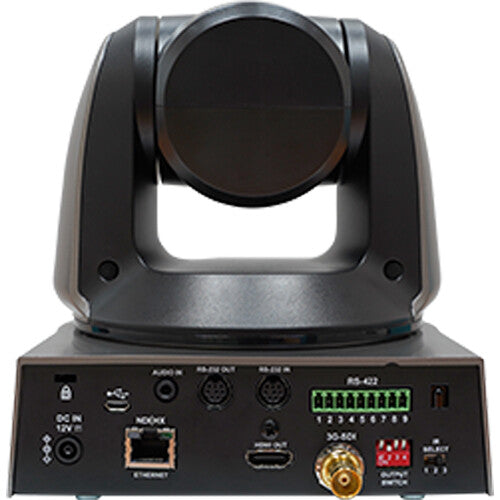

Interface
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI 1.0 Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
|
| Other I/O |
1x Mini-DIN 8-Pin (RS-232) Input
1x Mini-DIN 8-Pin (RS-232) Output 1x Block 9-Pin (RS-422) 1x RJ45 Control Input 1x USB-C Input |
| Built-In Speaker |
No
|
Power
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x Barrel (12VDC) Input
|
| Power Consumption |
Power Supply: 17 W
PoE: 18.5 W |
General
| Mounting |
1x 1/4"-20 Female for Tripod
|
| Certifications |
FCC Part 15 Class A, CE, ICES-003
|
| Dimensions (W x H x D) |
6.9 x 7.3 x 7.4" / 174 x 186 x 187 mm
|
| Weight |
4.4 lb / 2 kg (Body Only)
|
Packaging Info
| Package Weight |
8.08 lb
|
| Box Dimensions (LxWxH) |
12.4 x 10.8 x 10.6"
|
