Magewell Capture

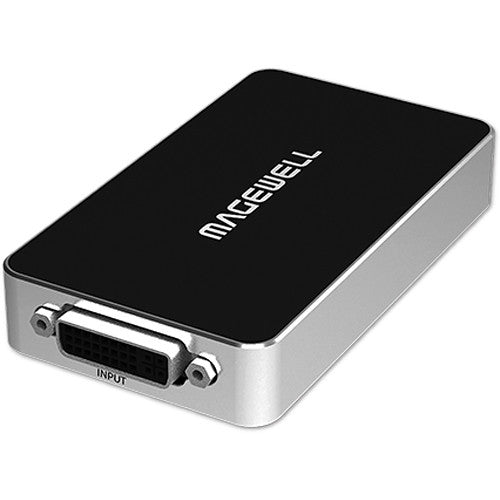

USB Capture DVI Plus

Key Features

One-Channel HD Capture Card
USB 3.0 Dongle
Capture of DVI + Audio, VGA + Audio
Capture of HDMI + Embedded Audio
Capture of Component + Audio
Line-In Audio Input
Extract HDMI Embedded Audio via Line Out
Supports Windows, Mac, and Linux

Magewell 32080 Overview

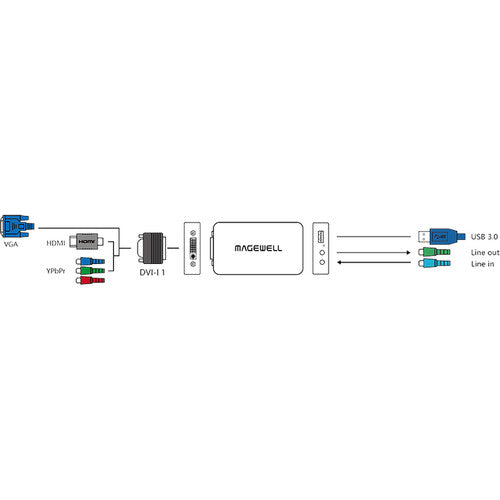

When you need to capture a variety of video signals into your computer, the Magewell USB Capture DVI Plus is a flexible external capture card that connects to your computer via USB 3.0 and supports a variety of input video formats. The Capture DVI Plus sports a built-in DVI-I input, and using the included adapters and breakout cables you can capture DVI-I, DVI + audio, VGA + audio, component video + audio, analog audio by itself, as well as HDMI video with its embedded audio.

The Capture Plus supports Windows, Mac, and Linux and may be used with select Chrome OS installations. It supports a variety of video formats with resolutions up to 2048 x 2160 and frame rates up to 120 fps. The default capture format is YUY2 4:2:2 8-bit, but the card also supports UYVY 4:2:2 8-bit as well as RGB24 and RGB32 4:4:4 8-bit.

Input Features

Auto scan of video input sources
Manual selection of video input source
Auto selection of linked (embedded) audio input source when the video input source changes
Manual selection of audio input source
Support for input video resolutions up to 2048x2160

VGA and Component Features

12-bit ADC
Support for RGB & YCbCr (YUV) color formats
Support for 'Separated sync', 'Composite sync', 'Sync-on-green' (SOG), 'Sync-on-luminance' (SOY)
Support for DMT, CEA, CVT, GTF video timings
Input signals up to 165 MHz pixel rate are digitized with 1:1 sampling
Input signals over 165 MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss - NOT recommended by MFR)
Auto detection of RGB & YCbCr color formats
Auto or manual sampling phase adjustment
Auto horizontal alignment
Support for customized video timings
Support for customized video resolutions for CVT/GTF timings

HDMI Features

225 MHz HDMI receiver
Adaptive HDMI equalizer supports cable lengths up to 100'
Support for customized EDID
Support extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut Info Frames
Full colorimetry support
Supports 8/10/12-bit color depths
Supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Supports up to 2 channel IEC60958 audio streams
Supports extraction of audio formation information & channel status data
Supports extraction of video timing information
Supports extraction of 3D format information
Supports Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode

Analog Audio

Supports extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack
Supports capture of stereo analog audio from Line In

Video Capture

Supports capture resolutions up to 2048x2160
Supports capture frame rates up to 120 fps
Typical capture frame rates on the Intel USB 3.0 controller are as follows:
1920x1080 YUY2 (up to 75 fps), 1920x1080 RGB24 (up to 60 fps)
Supports YUY2 & UYVY 4:2:2 8-bit
Supports RGB24 & RGB32 4:4:4 8-bit
The default capture format is YUY2. Additional capture format can be selected using USB Capture Utility

Video Processing

160 Mpixels/s processing bandwidth
Video cropping
Video scaling
Video de-interlacing
Weave
Blend top & bottom field
Top field only
Bottom field only
Video aspect ratio conversion
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
Auto or manual selection of input color format & quantization range
Auto or manual selection of capture color format, quantization range & saturation range
Support for RGB, YCbCr 601, YCbCr 709 color formats
Support for Limited or Full quantization range
Support for Limited, Full & 'Extended gamut' saturation range
Video frame rate conversion
Vertical flip and mirror

LED Indicator

Status LEDs indicate the working state of each channel:

Pulsing slowly: idle
On: input signal locked
Off: input signal unlocked
Double blinks: memory failed or FPGA configuration failed

Magewell 32080Specs

Input Interfaces	DVI-I DVI 1.0 HDMI 1.4a (via breakout cable) VGA (via DVI-to-VGA converter) Component (via breakout cable) 3.5 mm audio jack Unbalanced Line In
Output Interface	3.5 mm audio jackUnbalanced Line Out
Host Interface	USB 3.0Compatible with USB 3.1 Gen 1Compatible with USB 2.0
OS	Recommended Windows Windows 7 Ultimate / 8.1 Enterprise / 10 Enterprise / Server 2008 R2 DataCenter / Server 2012 R2 DataCenter / Server 2016 R2 DataCenter (x86 & x64) Linux Ubuntu 12.04 / 14.04 / 16.04 (x86 & x64) Ubuntu 17.04 / 17.10 (x64) CentOS 6.5 / 7.2 (x86 & x64) Fedora 25 / 26 (x64) Red Hat 6.5 (x86 & x64) Mac OS X 10.9.5 / 10.10 / 10.11.2 / 10.11.3 / 10.11.4 macOS 10.12 / 10.13.2 / 10.13.3 Supported Windows Windows 7 / 8 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2016 (x86 & x64) Linux (Support x86, x64 & ARM Architecture) Ubuntu 12.04 / 14.04 / 16.04 / 17.04 / 17.10 (x86 & x64) CentOS 6.5 / 7 (x86 & x64) Fedora 25 / 26 / 27 (x86 & x64) Red Hat 6.5 and Above (x86 & x64) Other Linux OS with Kernel Version 2.6.35 and Above Mac OS X 10.9 / 10.10 / 10.11 macOS 10.12 / 10.13 Chrome OS Chrome
Supported APIs	Windows DirectShow Wave API/DirectSound/WASAPI Linux V4L2 ALSA OS X/macOS QuickTime AV Foundation
Supported Software	VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow, V4L2, QuickTime, AV Foundation Based Encoding or Streaming Software
Power Consumption	5 V Max Current: 600 mA Max Power Consumption: ~ 3 W
Environment	Operating Temperature: 32 to 122°F / 0 to 50°C Storage Temperature: -4 to 158°F / -20 to 70°C Relative Humidity: 5% to 90% Non-Condensing
Dimensions	4 x 2.24 x 0.67" / 10.15 x 5.68 x 1.7 cm
Weight	Not Specified by Manufacturer

Packaging Info

Package Weight	0.7 lb
Box Dimensions (LxWxH)	8.6 x 7.7 x 1.6"
