TheUltra Encode AIOlive media encoder fromMagewellupgrades the capabilities of the original Ultra Encode models for advanced use cases. Expanded features include HDMI and SDI input connectivity in a single unit, 4K encoding and streaming from the HDMI input, simultaneous multi-protocol streaming, higher streaming bit rates, and both SD card and external USB recording. This encoder is ideal for high-quality live streaming of content like sports, education, and live events as well as IP-based production and AV-over-IP.
Mixes HDMI and SDI Inputs
Mixes video from the HDMI and SDI inputs in picture-in-picture (PiP) or side-by-side forms into a combined output.
Multiple Streaming Outputs
Outputs up to six simultaneous sessions over multiple streaming protocols at 32 Mb/s per session.
NDI Protocols
Supports multiple NDI standards, including the high-efficiency, low-bandwidth NDI|HX 3.
Scheduling
Supports streaming and recording scheduling.
Video Encoding
Supports H.264 and efficient H.265 (HEVC) video encoding.
Audio Encoding
Eight-channel AAC audio encoding with 16-256 Kb/s.
Streaming Platforms
Native Facebook, Twitch, and YouTube support.
Magewell Ultra Encode AIOSpecs
Key Specs
IP Video
H.264/H.265: 2560 x 1440 to 4096 x 2160 at 30p Encoding H.264/H.265: 1280 x 720 to 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding H.264/H.265: 720 x 576 at 25p Encoding H.264/H.265: 720 x 480 at 30p Encoding
4096 x 2160p at 30/60 fps 2048 x 1080p at 23.98/24/25/29.97/30/48/50/59.94/60 fps 2048 x 1080i at 23.98/24/25/29.97/30/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/48/50/59.94/60 fps 1920 x 1080i at 23.98/24/25/29.97/30/48/50/59.94/60 fps 1280 x 720p at 25/29.97/30/50/59.94/60 fps 720 x 576p at 25 fps 720 x 576i at 50 fps 720 x 480p at 29.97 fps 720 x 480i at 59.94 fps
Display
LCD
IP Encoding/Decoding
IP Video
H.264/H.265: 2560 x 1440 to 4096 x 2160 at 30p Encoding H.264/H.265: 1280 x 720 to 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding H.264/H.265: 720 x 576 at 25p Encoding H.264/H.265: 720 x 480 at 30p Encoding

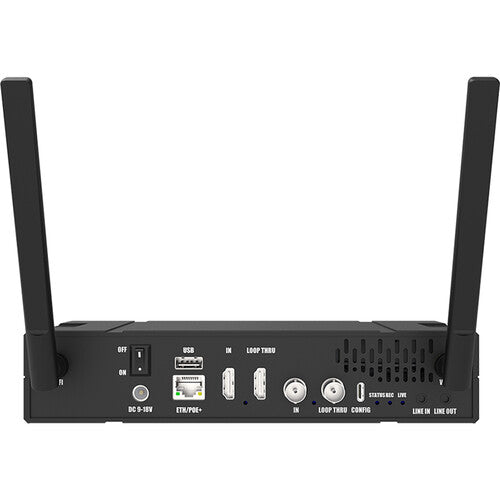

1x 1/8" / 3.5 mm TRS Input 1x 1/8" / 3.5 mm TRS Output
Other I/O
2x USB-A 1x USB-C
HDCP Support
Yes
Embedded Audio
HDMI/SDI
Internal Recording
Recording Media
1x SD (Unspecified Type)
Recording Modes
4096 x 2160p at 30/60 fps 2048 x 1080p at 23.98/24/25/29.97/30/48/50/59.94/60 fps 2048 x 1080i at 23.98/24/25/29.97/30/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/48/50/59.94/60 fps 1920 x 1080i at 23.98/24/25/29.97/30/48/50/59.94/60 fps 1280 x 720p at 25/29.97/30/50/59.94/60 fps 720 x 576p at 25 fps 720 x 576i at 50 fps 720 x 480p at 29.97 fps 720 x 480i at 59.94 fps
