Magewell Pro Convert

Pro Convert 12G SDI Plus

Key Features

Convert 12G-SDI Video to NDI Stream
1 x 12G-SDI Input, 1 x 12G-SDI Loop-Out
1 x Gigabit RJ45 + PoE NDI Output
12G/6G/3G/HD/SD-SDI Supported
Input up to DCI 4K60 10-Bit 4:2:2 Video
NDI Encode up to DCI 4K60 8-Bit 4:2:2
1 x Mini DIN-8 for PTZ/Tally

Magewell Pro Convert Overview

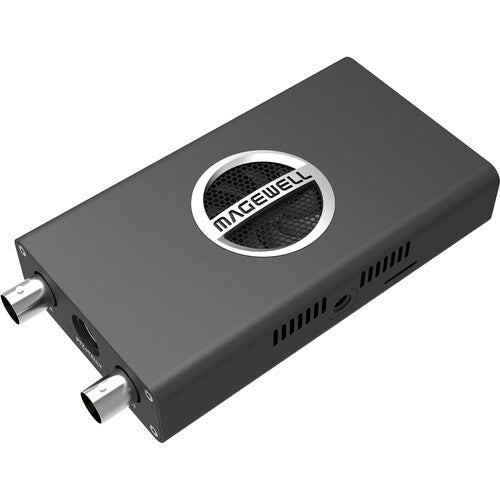

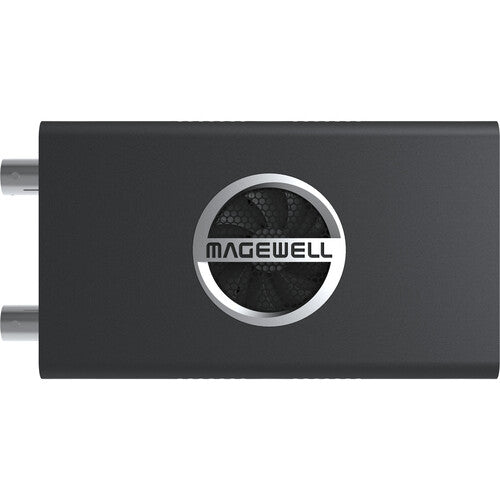

Convert 4K 12G-SDI video to an NDI stream with the Pro Convert 12G-SDI 4K Plus video signal converter from Magewell. The Pro Convert 12G-SDI 4K Plus is a plug-and-play video converter that features one SDI input and one SDI loop-through output with eight channels of embedded audio, and it supports SDI input up to DCI 4K 4096 x 2160 video at 60 fps. The RJ45 Gigabit Ethernet port supports encoded NDI output up to DCI 4K 4096 x 2160 8-bit 4:2:2 video at 60 fps.

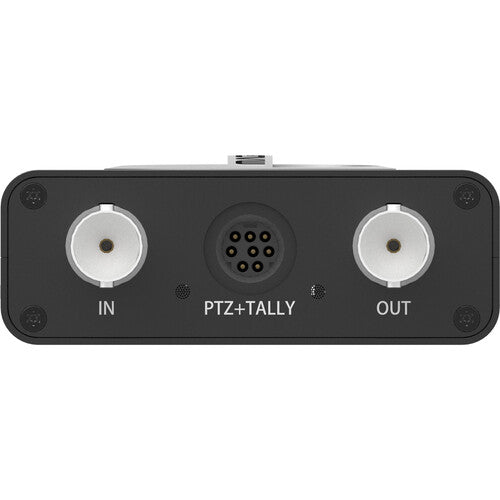

The 12G-SDI loop-through output allows you to view your input on a monitor while your NDI-encoded stream can be sent to a variety of NDI-compatible encoding or streaming applications such as OBS, XSplit, vMix, Wirecast, and others via Ethernet. The mini DIN-8 tally/PTZ port provides tally input to pass-through as well as for use with the unit's status LEDs. The LEDs also indicate power, output, and input signal status.

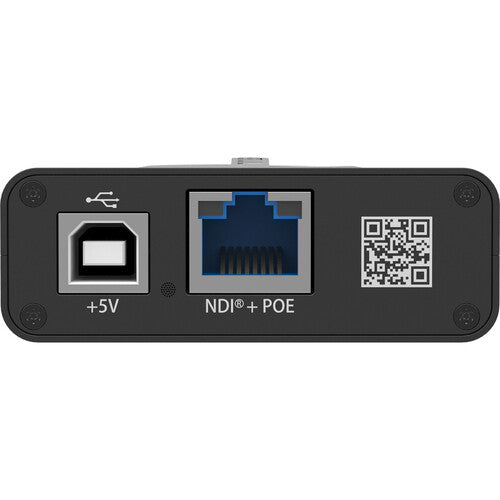

The unit is powered by a 5V power adapter connected to its USB 2.0 Type-B port or via PoE over its RJ45 port. The Pro Convert can be managed with a web UI to configure settings and to perform firmware updates via the USB port. A 1/4"-20 mounting thread allows you to mount the unit in a rack, with a bracket, or on a stand. Included with the Pro Convert are a USB cable, a 5V power adapter, a mini DIN-8 cable, and an L-bracket for mounting.

Input Features

Single-link 12G-SDI input and loop-through output
Support for up to 4096 x 2160p60 input
Support for up to 16 (mono) audio channels

NDI Format

Support for up to 4096 x 2160 60fps 4:2:2 8-bit NDI encoding
Send NDI streams across network segments
Remotely control PTZ cameras via NDI
Support for NDI 5.x

Features

Very low latency
Advanced configuration and device status through intuitive Web GUI
Tally lights and camera mounting for live production applications
HTTP-based APIs for custom integration

Magewell Pro ConvertSpecs

Inputs / Outputs

Video Inputs	1x BNC (12G-SDI) Female
Video Outputs	1x BNC (12G-SDI) Female (Loop Output) 1x RJ45 (NDI) Female
Other I/O	1x RJ45 LAN, NDI, PoE Input/Output 1x Mini-DIN 8-Pin PTZ, RS-422 Input/Output 1x USB-B Firmware Input
Expansion Slots	No

Format Support

Input Video Format	SDI (10/12-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K at 23.98/24/25/29.97/30/50/60 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576p 25 fps 576i / 625 lines 50 fps 480p 29.97 fps 480i / 525 lines 59.94 fps
Output Video Format	SDI (8-Bit 4:2:2) DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 25/29.97/30/50/59.94/60 fps 720p 50/59.94/60 fps
Embedded Audio	SDI: 16-Channel

Standards

EDID Support	Manual Control
HDR Support	No

Hardware

OS Compatibility

Windows
macOS

Power

Power I/O	1x USB-B (5 VDC at 1.6 A) Input
PoE Support	PoE 802.3af
Power Consumption	Power Supply: 5 VDC at 2.1 A (8.5 W)

Environmental

Operating Temperature	32 to 113°F / 0 to 45°C
Storage Temperature	-4 to 158°F / -20 to 70°C
Operating Humidity	5 to 90%

General

Dimensions

4.65 x 2.64 x 0.91" / 11.8 x 6.7 x 2.3 cm

Packaging Info

Package Weight	1.66 lb
Box Dimensions (LxWxH)	8.4 x 4.4 x 2.7"
