Pro Capture DVI 4K - MOQ 20
Pro Capture DVI 4K - MOQ 20
Key Features
- Single DVI-D Input
- HDMI 1.4 Input with Optional Adapter
- PCIe x 4 Interface
- Supports up to 4096 x 2160 DCI 4K Video
- 10-Bit / 8-Bit Processing
- Multiple Color-Space Support
- Cropping, Scaling, De-Interlacing
- Frame-Rate & Aspect-Ratio Conversion
- macOS, Windows, and Linux Compatible
- DirectShow, DirectKS, V4L2 Compatible
Magewell Pro Capture DVI 4K Overview

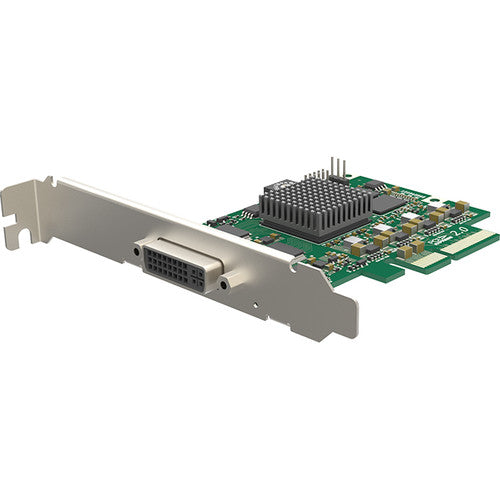

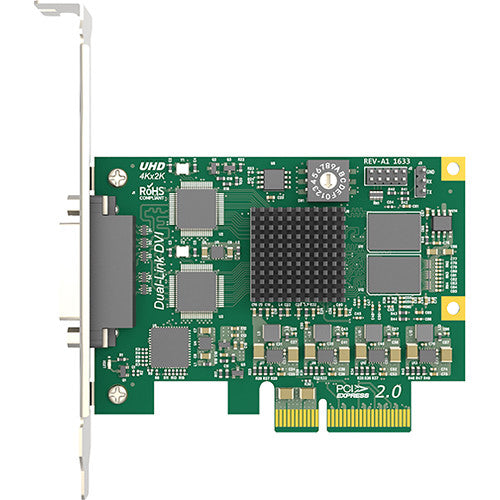

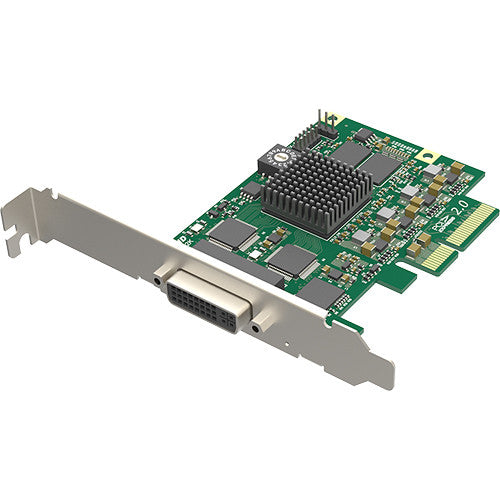

Capture 4K resolution video using the low-profile Magewell Pro Capture DVI 4K Capture Card. This PCI Express x 4 capture card is compatible with DCI 4K and UHD video formats up to 4096 x 2160, and features a single DVI-D (single or dual) input. Use an optional DVI-D to HDMI 1.4 adapter (not included) to input via HDMI. Capture uncompressed video from a camera or switcher's DVI-D or HDMI 1.4 output on your computer for recording, editing, or streaming.
The Magewell Pro Capture DVI 4K is compatible with Windows, macOS, and Linux systems. Extraction of audio-formation and channel-status data, video-timing, Sony and Canon DSLR timecode, and 3D-format information is supported, as are multiple color spaces in 8- and 10-bit formats. Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ration conversion. Multiple Magewell 1160 cards can be used and numbered in one system.
HDMI-Specific Features
- Dual 165 MHz HDMI receiver
- Adaptive HDMI equalizer
- Customized EDID support
- Extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
- Full colorimetry support
- Supports single-link DVI or HDMI signals at a pixel rate of no more than 165 MHz
- Dual-link DVI signals supported at a pixel rate of no more than 330 MHz
- Extraction of audio formation information, and channel status data supported
- Extraction of video timing information supported
- Extraction of 3D format information supported
- Extraction of Sony/Canon DSLR time code supported
- Side-by-Side Half, Top-and-Bottom, and Frame Packing 3D mode supported
Video Capture Format Support
- Image-capture resolutions up to 4096 × 2160 pixels
- Capture frame rates up to 144 fps (Actual capture frame rate can be limited by PCIe bandwidth and image resolution)
- 4:2:0 8-bit capture formats: NV12, I420, YV12
- 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
- 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
- 4:4:4 10-bit capture formats: V410, Y410
- Additional capture formats are supported via Pro Capture SDK for DirectKS
Video Processing Features
- Two video processing pipelines with ~360 MP/s processing bandwidth for each one
- Full 10-bit video processing
- Video cropping and scaling
- Video de-interlacing:
Weave
Blend top & bottom field
Top field only
Bottom field only
- Video aspect ratio conversion:
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding
(Letterbox or Pillarbox)
- Video color format conversion:
Auto or manual selection of input color format & quantization range
Auto or manual selection of capture color format, quantization range & saturation range
Supports RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
Supports Limited or Full quantization range
Supports Limited, Full & 'Extended gamut' saturation range
- Video frame rate conversion
- Video OSD composition:
Supports PNG OSD image (up to 4096 × 2160)
Supports dynamic loading of RGBA OSD image via SDK
Magewell Pro Capture DVI 4KSpecs
| Host Interface |
4 x PCI-Express Gen2
|
| Video Resolution Supported |
Up to 4096 × 2160
10-bit color |
| Frame Rates Supported |
Up to 144 fps
|
| Video Processing |
2 x 360 MP/s pipelines
|
| Color Spaces Supported |
BGR24, BGR32
I420, IYU2 NV12 RGB24, RGB32 UYVY V308, V408, V410 Y410, YUY2, YUYV, YV12 |
| Supported OS |
Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture) Mac OS X / macOS 10.9-10.11, 10.12 |
| Supported APIs |
Windows: DirectShow, DirectKS, Wave API/DirectSound/WASAPI
Linux: V4L2, ALSA |
| Supported Software |
VLC
VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2 encoding/streaming software |

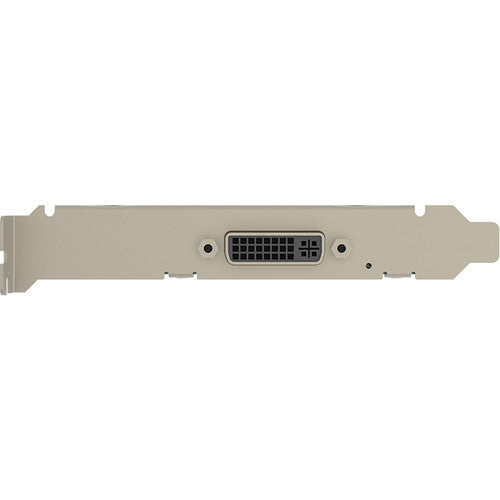

| Input Port |
1 x DVI-D Dual-Link
|
| Environmental |
Operating temperature: 32 to 104°F (0 to 40°C)
Storage temperature: 32 to 158°F (-20 to 70°C Relative Humidity: 5 to 90%, non-condensing |
| Form Factor |
Low-profile PCIe x 4 add-on card
|
| Power Consumption |
Max Current at 12 V: ~ 0.4 A
Max Current at 3.3 V: ~ 0.86 A Max Power Consumption: ~ 7.28 W |
| Dimensions |
Without PCI Bracket:
3.65 x 2.71" (92.76 x 68.88 mm) |
Packaging Info
| Package Weight |
0.4 lb
|
| Box Dimensions (LxWxH) |
8.7 x 7.7 x 1.6"
|
