Magewell Capture
Pro Capture AIO 4K - MOQ 20
Pro Capture AIO 4K - MOQ 20
Key Features
- HDMI 1.4 & 6G-SDI Input
- Low-Profile PCIe x4 Add-On Card
- Captures Embedded Audio
- Supports up to 4096 x 2160 DCI 4K Video
- 10-Bit Video Processing
- Multiple Color-Space Support
- Cropping, Scaling, De-Interlacing
- Frame-Rate & Aspect-Ratio Conversion
- macOS, Windows, and Linux Compatible
- DirectShow, DirectKS, V4L2 Compatible
Magewell Pro Capture AIO 4K Overview

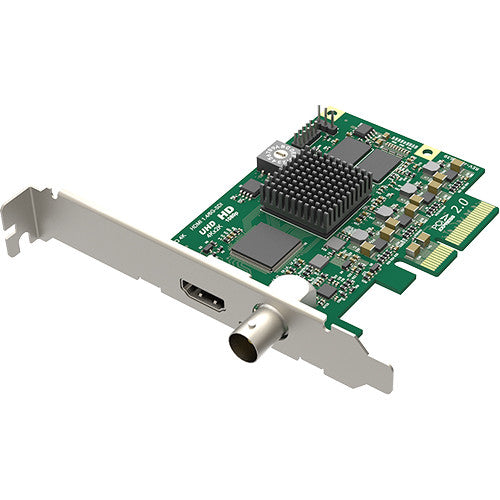

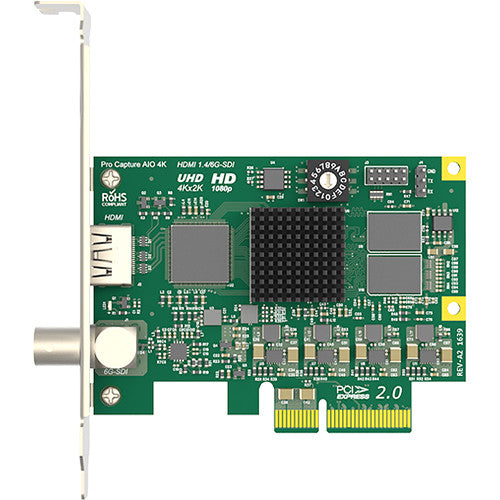

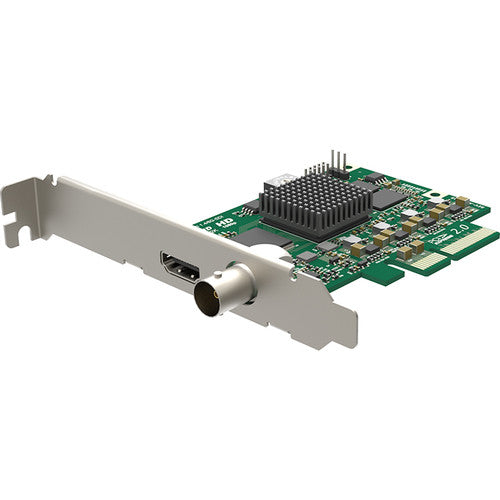

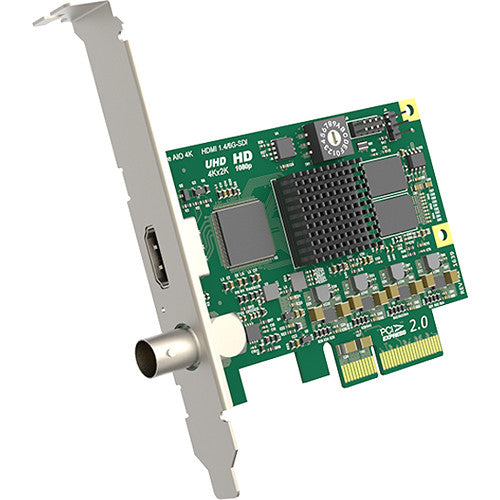

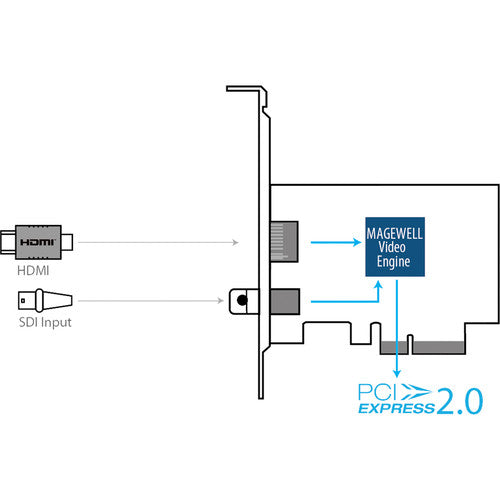

Capture a single channel of 4K resolution video with embedded audio using the Magewell Pro Capture AIO 4K Capture Card. This PCI Express x 4 capture card is compatible with DCI 4K and UHD video formats up to 4096 x 2160, and ingests using either its HDMI or its SDI (BNC) ports. Capture uncompressed video and audio from a camera or switcher on your computer for recording, editing, or streaming.
The low-profile Magewell AIO 4K is compatible with Windows, macOS, and Linux systems. Extraction of audio-formation and channel-status data, video-timing, Sony and Canon DSLR timecode, and 3D-format information is supported, as are multiple color spaces in 8- and 10-bit formats. Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ration conversion. Multiple Magewell cards can be used and numbered in one system.
HDMI-Specific Features
- 297 MHz HDMI receiver
- Adaptive HDMI equalizer
- Customized EDID support
- Extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
- Full colorimetry support
- Support for 8-bit signals using RGB/YUV 4:4:4 color sampling at pixel rates no greater than 297 MHz
- Support for 12-bit signals using YUV 4:2:2 color sampling at pixel rates no greater than 297 MHz
- Support for 10/12-bit signals using RGB/YUV 4:4:4 color sampling at pixel rates no greater than 170 MHz
- Extraction of audio formation information, and channel status data supported
- Extraction of video timing information supported
- Extraction of 3D format information supported
- Extraction of Sony/Canon DSLR time code supported
- Side-by-Side Half, Top-and-Bottom, and Frame Packing 3D mode supported
SDI-Specific Features
- Integrated cable equalizer supporting cable lengths up to 755' for HD signals
- Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS/6G (SMPTE 2081) standards
- Support for 2K (2048 × 1080) & 4K (4096 × 2160) mode
- Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- Support for 10/12-bit color depth
- Support for extraction of SMPTE 352 payload identifier
- Support for up to 8 (mono) audio channels at 48 KHz (channels 1-8 from the 16 available in the SDI spec)
- Support for extraction of audio formation information & channel status data
- Limited support of 3Gb-DS: only the first stream can be captured
- Limited support for capture of the first link of dual link interfaces:
YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
YCbCr 4:4:4 10-bit: captured as 4:2:2
RGB 4:4:4: R/B sub-sampled
Video Capture Formats
- Image-capture resolutions up to 4096 × 2160 pixels
- Capture frame rates up to 144 fps (Actual capture frame rate can be limited by PCIe bandwidth and image resolution)
- 4:2:0 8-bit capture formats: NV12, I420, YV12
- 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
- 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
- 4:4:4 10-bit capture formats: V410, Y410
- Additional capture formats are supported via Pro Capture SDK for DirectKS
Video Processing Features
- Two video processing pipelines with ~360 MP/s processing bandwidth for each one
- Full 10-bit video processing
- Video cropping and scaling
- Video de-interlacing:
Weave
Blend top & bottom field
Top field only
Bottom field only
- Video aspect ratio conversion:
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding
(Letterbox or Pillarbox)
- Video color format conversion:
Auto or manual selection of input color format & quantization range
Auto or manual selection of capture color format, quantization range & saturation range
Supports RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
Supports Limited or Full quantization range
Supports Limited, Full & 'Extended gamut' saturation range
- Video frame rate conversion
- Video OSD composition:
Supports PNG OSD image (up to 4096 × 2160)
Supports dynamic loading of RGBA OSD images via SDK
Magewell Pro Capture AIO 4KSpecs
| Host Interface |
2 x PCI-Express Gen2
|
| Video Resolution Supported |
Up to 4096 × 2160
10/12-bit color |
| Frame Rates Supported |
Up to 144 fps
|
| Video Processing |
2 x 360 MP/s pipelines
|
| Color Spaces Supported |
BGR24, BGR32
I420, IYU2 NV12 RGB24, RGB32 UYVY V308, V408, V410 Y410, YUY2, YUYV, YV12 |
| Supported OS |
Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture) Mac OS X / macOS 10.9-10.11, 10.12 |
| Supported APIs |
Windows: DirectShow, DirectKS, Wave API/DirectSound/WASAPI
Linux: V4L2, ALSA |
| Supported Software |
VLC
VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2 encoding/streaming software |

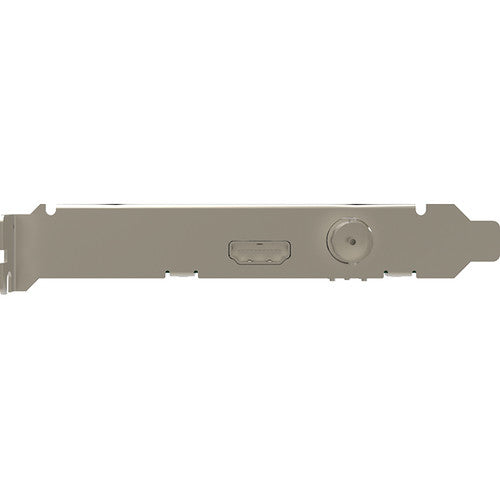

| Input Interfaces |
1 x HDMI 1.4
1 x 6G-SDI via BNC |
| Environmental |
Operating temperature: 32 to 104°F (0 to 40°C)
Storage temperature: 32 to 158°F (-20 to 70°C Relative Humidity: 5 to 90%, non-condensing |
| Form Factor |
Low-profile PCIe x 4 add-on card
|
| Power Consumption |
Max Current at 12V: ~ 0.39 A
Max Current at 3.3V: ~ 0.2 A Max Power Consumption: ~ 5.29 W |
| Dimensions |
Without PCI Bracket:
3.65 x 2.69" (92.79 x 68.43 mm) |
Packaging Info
| Package Weight |
0.4 lb
|
| Box Dimensions (LxWxH) |
8.6 x 7.7 x 1.7"
|
