Magewell Capture
Eco Capture SDI 4K Plus M.2
Eco Capture SDI 4K Plus M.2
Key Features
- Capture SD/HD/3G/6G/12G-SDI Via PCIe 2.0
- Supports 8-Channel Embedded Audio
- 10-Bit Video Processing, DCI 4K
- Converts Aspect Ratios
- Compatible with Windows and Linux
Magewell Eco Capture Overview

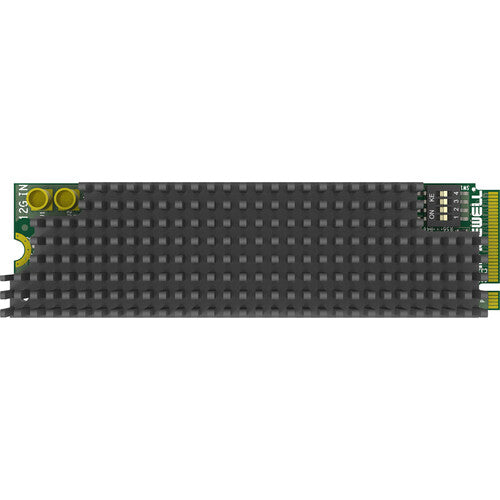

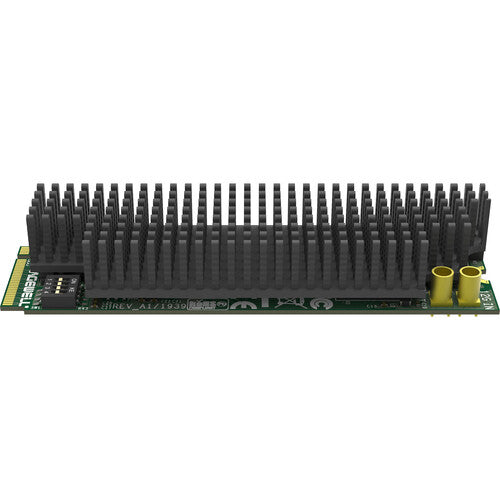

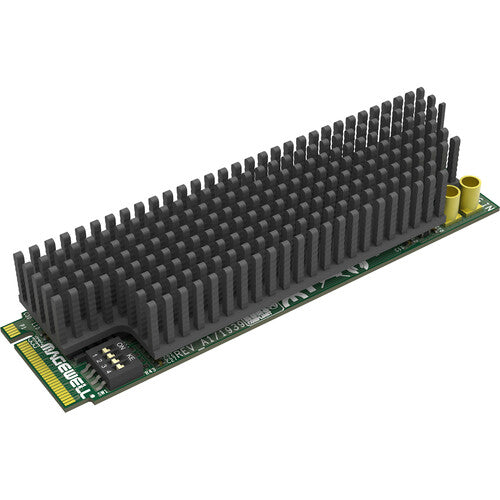

Capture 10-bit video at up to DCI 4K resolution with the Eco Capture SDI 4K Plus M.2 Capture Card from Magewell. The 12G-SDI input supports SD/HD/3G/6G and 12G-SDI and captures your stream via PCIe 2.0 with eight channels of embedded audio, and there is also a 12G-SDI output that mirrors the formats handled by the input. The unit is capable of converting aspect ratios and operating system compatibility includes multiple versions of Windows and Linux.
Video Engine Features
- 10-bit video processing
- Deinterlace
- Cropping
- Color adjustment
- Hardware timestamp
- Color space conversion
- Up/down conversion
- Aspect ratio conversion
- SG-DMA transmission mode
Signal Detection and Support
- Auto detection of input signal format
- Closed caption
Supported Software
- VLC
- VirtualDub
- OBS
- XSplit
- vMix
- VidBlaster
- Wirecast
- Microsoft Media Encoder
- Adobe Flash Media Encoder
- Any DirectShow/V4L2 encoding/streaming software
SDI Specific Features
Integrated cable equalizer extending the cable length as follows:
- up to 1,410' for SD-SDI signals
- up to 656' for HD-SDI signals
- up to 360' for 3G-SDI signals
- up to 164' for 6G-SDI signals
- up to 98' for 12G-SDI signals
Support for:
- DCI 4K (4096 x 2160)
- RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- 10/12-bit color depth
- Extraction of SMPTE 352 payload identifier
- Up to 8 (mono) audio channels at 48KHz
- Extraction of audio formation information & channel status data
- Closed caption via SDK
Video Capture and Processing
Video capture formats:
- Image resolutions up to 4096 x 2160 pixels
- Frame rates up to 144fps (actual capture frame rate can be limited by PCIe bandwidth)
- 4:2:0 8-bit capture formats: NV12, I420, YV12
- 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
- 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
Video processing:
- 10-bit 4:4:4
- Video scaling
- Video de-interlacing
- Weave
- Blend top & bottom field
- Video color format conversion
- Auto or manual selection of input color format & quantization range
- Auto or manual selection of capture color format, quantization range, and saturation range
- Support for RGB, YCbCr 601, YCbCr 709, and YCbCr 2020 color formats
- Support for limited or full quantization range
- Support for limited, full, and extended gamut saturation range
- Video frame rate conversion
Magewell Eco CaptureSpecs
Inputs / Outputs
| System Connection |
PCIe 2.0 x4
|
| Video Inputs |
1x BNC (12G-SDI) Female
|
| Audio Inputs |
No
|
| Video Outputs |
1x BNC (12G-SDI) Female (Loop Output)
|
Format Support
| Input Video Format |
SDI (10/12-Bit 4:4:4/4:2:2 RGB)
DCI 4K |
| Output Video Format |
SDI (10/12-Bit 4:4:4/4:2:2 RGB)
DCI 4K |
| Embedded Audio |
SDI: 8-Channel
|
Standards
| HDR Support |
Not Specified by Manufacturer
|
Hardware
| OS Compatibility |
Windows 7 or Later
Windows Server 2008 R2 Windows Server 2012 R2 CentOS 6.5 or Later Ubuntu 12.4 or Later Linux |
| Power Consumption |
Device: 3.3 VDC at 2.17 A (7.16 W)
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 158°F / -20 to 70°C
|
| Operating Humidity |
5 to 90% ()
|
